Polyetheretherketone (PEEK) is revolutionizing the medical industry. This high-performance polymer boasts exceptional properties: it’s biocompatible, chemically resistant, and has an elastic modulus similar to human bone, reducing stress shielding in implants. From dental restorations like Removable Partial Denture (RPD) to critical spinal devices such as cervical cages, PEEK is enabling lighter, more compatible, and imaging-friendly (radiolucent) medical solutions.

However, machining PEEK to medical-grade standards presents significant hurdles. Its toughness and abrasive nature lead to rapid tool wear, poor surface finish, and stubborn burrs. Traditional CNC machining often results in thermal deformation, micro-cracks, and excessive burring—flaws unacceptable for implants requiring perfect fit and biocompatibility. The post-process labor for deburring and cleaning drives up costs and compromises part integrity. These pain points highlight the need for a smarter, more precise manufacturing approach.

Conprofe’s Innovative Machining Ecosystem for PEEK Material

Addressing these challenges head-on, Conprofe offers specialized machining solutions that transform PEEK processing. Our solutions integrate advanced kinematics with patented technologies, creating an optimized environment for medical-grade fabrication.

Key systems include the Conprofe Lightweight Vertical 5-Axis Machining Center and the Lightweight Ultrasonic Vertical 5-Axis Machining Center. For highly complex, green manufacturing, the Conprofe Ultrasonic-Green Engraving & Milling Center (e.g., ULW-500 model) stands out. These machines are engineered to work seamlessly with our core technologies: Ultrasonic Machining (UM) and Supercritical CO₂ (ScCO₂) Cryogenic Cooling.

When combined with a 5-axis rotary table, this ecosystem can precisely manufacture delicate PEEK components like RPDs and anatomical cervical cages. The synergy of precision motion, ultrasonic energy, and ultra-low-temperature cooling tackles PEEK’s machinability issues directly, enabling clean, efficient, and repeatable production.

Case Studies: Tangible Advantages in Action

The superiority of Conprofe’s ultrasonic approach is best demonstrated through real-world results:

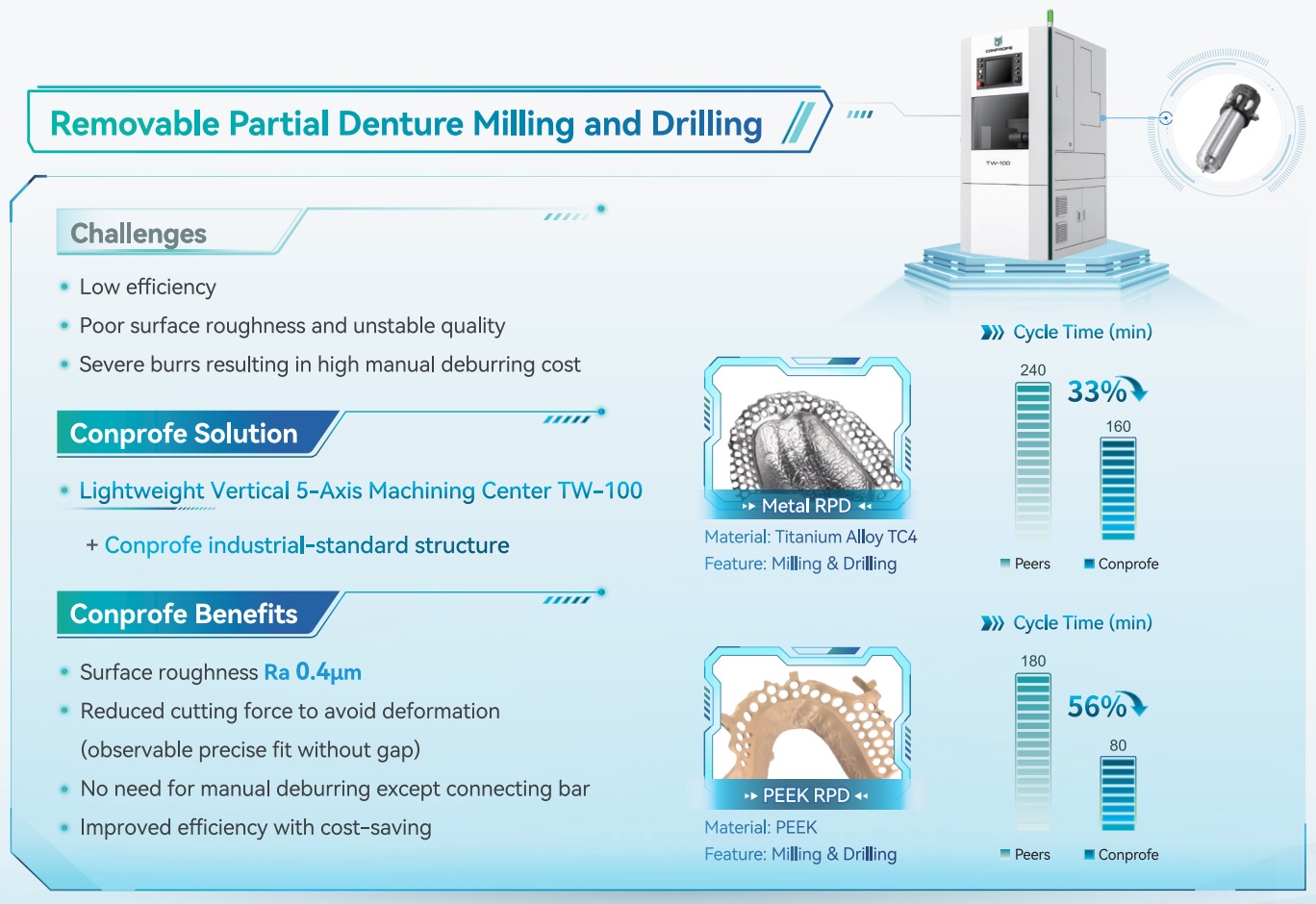

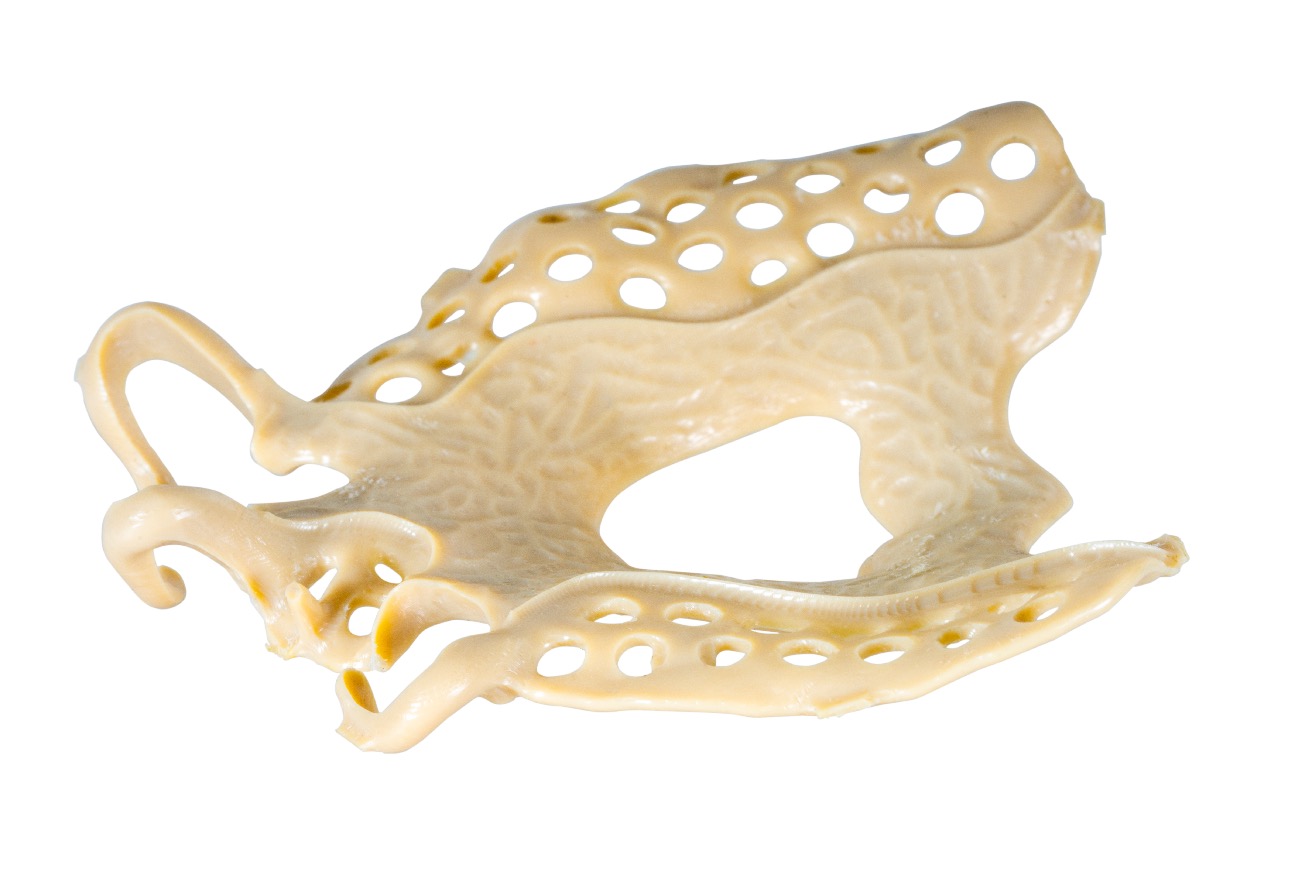

Case 1: RPD Machining

Using the Conprofe Lightweight Vertical 5-Axis Machining Center TW-100, manufacturers perform 3D contour milling and angular drilling on PEEK RPDs. The integration of 5-axis capability and stable precision ensures excellent morphological fit—critical for patient comfort. The process yields a remarkably smooth surface finish right off the machine, virtually eliminating burrs. This significantly increases the first-pass yield rate, reduces scrapped parts, and slashes secondary finishing time. The result is higher productivity and lower costs for high-quality, patient-specific dental devices.

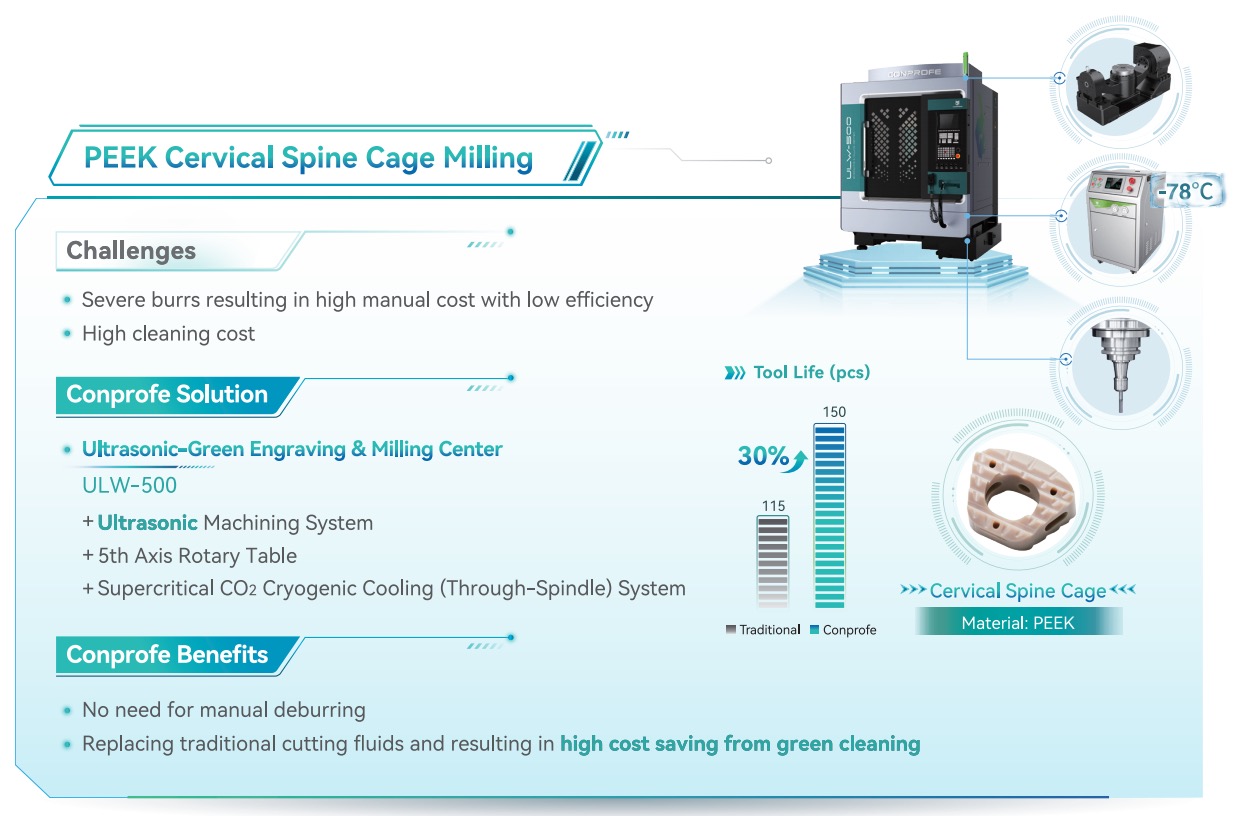

Case 2: Cervical Cage Production

For spinal implants, the Conprofe Ultrasonic-Green Engraving & Milling Center ULW-500 is deployed in a powerful configuration: Ultrasonic Technology + 5-Axis Rotary Table + Through-Spindle ScCO₂ Cryogenic Cooling. This setup is a game-changer for milling and drilling cervical cages.

• Burr Reduction: Achieves a 95% reduction in burrs, meaning parts are nearly burr-free, minimizing or eliminating manual deburring.

• Tool Life: The combination of ultrasonic vibration and ScCO₂ cooling drastically reduces cutting heat and abrasion, extending tool life by over 30%, lowering consumable costs and machine downtime.

• Green & Clean: The ScCO₂ coolant turns directly to gas after cutting, leaving no residual waste on the part. This “dry” machining process ensures a clean, dry workpiece, saving on costly and environmentally harmful cleaning solvents and streamlining the workflow from machining to sterilization.

Explore the Future of Medical Manufacturing with Us

PEEK is just the beginning. The future of patient-specific, high-performance medical devices relies on advanced manufacturing technologies.

Stay tuned for more deep dives into medical industry applications. We will continue to share insights and case studies that help you innovate.
