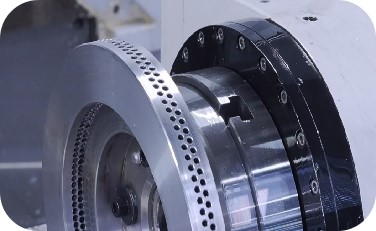

AlSiC Braking Disc Hole Drilling

Workpiece

AlSiC
Workpiece: D258x46mm
Hole: D4x45.5mm Holes
Depth-Diameter Ratio 11:1

11 - Conprofe Technology Co., Ltd.

Challenges

Hard-brittle material, easy to break
Poor tool life: <5 holes/tool
Quality failure from severe hole exit edge flagging
Long cycle time: 530s/hole

Benefits

No burrs or flanging at hole edges

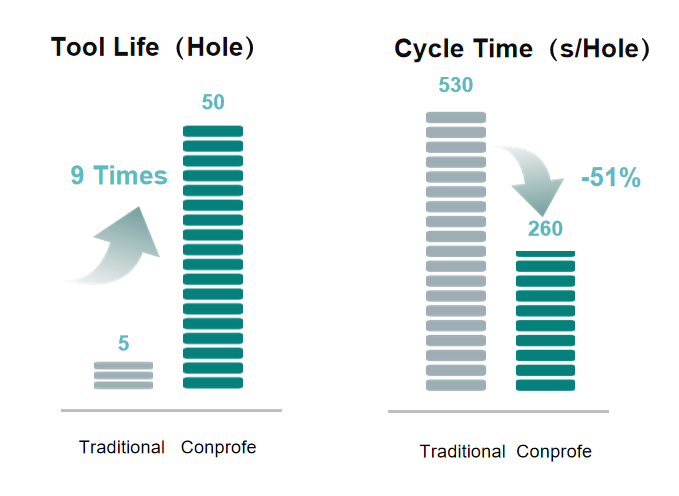

Tool life improved by 9 times to 50 holes/tool
Cycle time shortened by 51%, from 530s to 260s per hole

1703749312857 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_12 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
