Aluminum Silicon Carbide Hole Drilling & Thread Machining

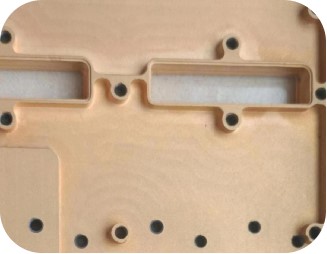

Workpiece

AlSiC (SiC60%)
Hole: M3, Depth 4-6mm
Hole Wall Thickness: 0.5mm

14 - Conprofe Technology Co., Ltd.

Challenges

Manual operation
Unstable quality and high scrap rate
Cycle time: >180s/hole
Tool life: 3~5 taps/hole

Benefits

No cracks or chippings

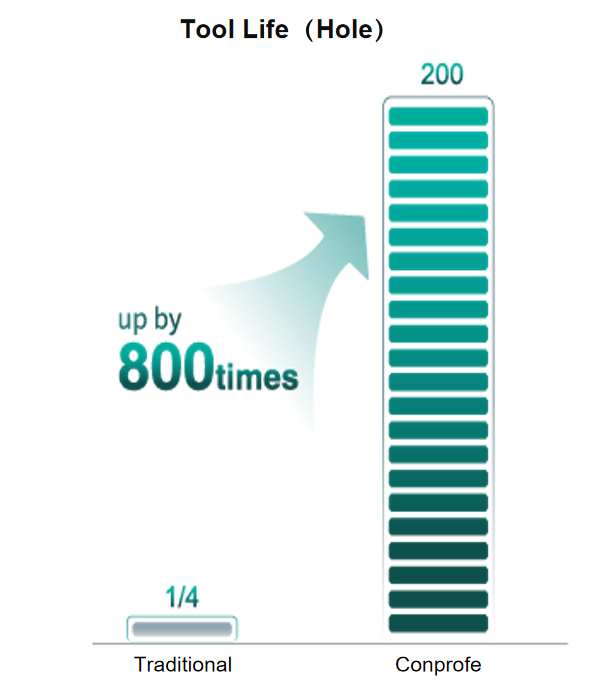

Tool life up by 800 times, from less than one hole to over 200 holes
Significant cost saving from replacing manual operation with CNC machining

1703749169511 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_13 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
