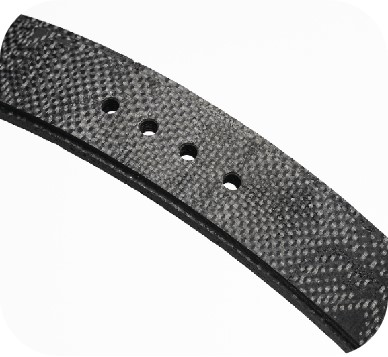

Carbon-Carbon Composite Hole Threading

Workpiece

Carbon-Carbon Composite

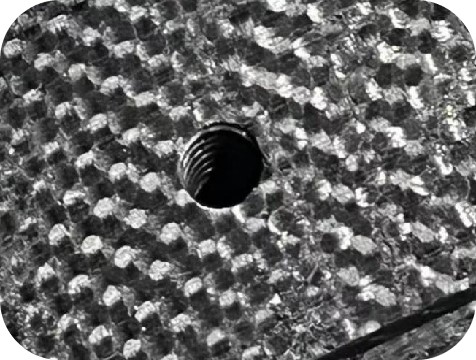

M5x0.8 Thread Holes

4-2 - Conprofe Technology Co., Ltd.

Challenges

CNC thread milling easily leading to material delamination and fiber fall-out
Low yield with manual tapping

Benefits

Qualified thread quality
Replacing manual operation with CNC thread milling

5-1 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_08 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
