Quartz Glass Optical Fibers Deep Hole Drilling

Workpiece

Quartz Glass

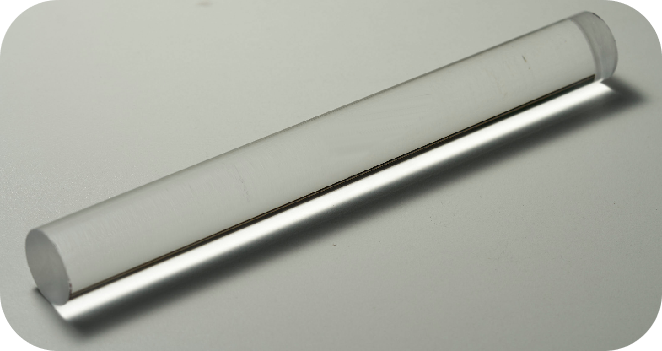

Workpiece: D30 x 250mm
Hole: D7.8 x 250mm
Depth-to-Diameter Ratio 32:1

image-2 - Conprofe Technology Co., Ltd.

Challenges

High requirement of hole parallelism and hole wall quality
Hole edge chipping
Long cutting tool of how rigidity

Benefits

Hole wall roughness 0.122~0.232μm with ultrasonic machining
Hole parallelism <0.0385mm (vs. required<0.8μm)

1704178280431 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_39 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
