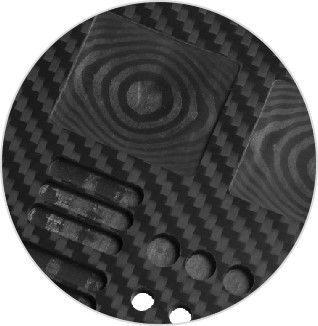

Carbon Composites Blind-Groove & Cavity Milling

Workpiece

Carbon Fiber Reinforced Plastics (CFRP)

图片1-2 - Conprofe Technology Co., Ltd.

Challenges

Poor dimensional and shape accuracy
Severe delamination and burrs

Benefits

Improved surface quality
Stable and high-precision machining

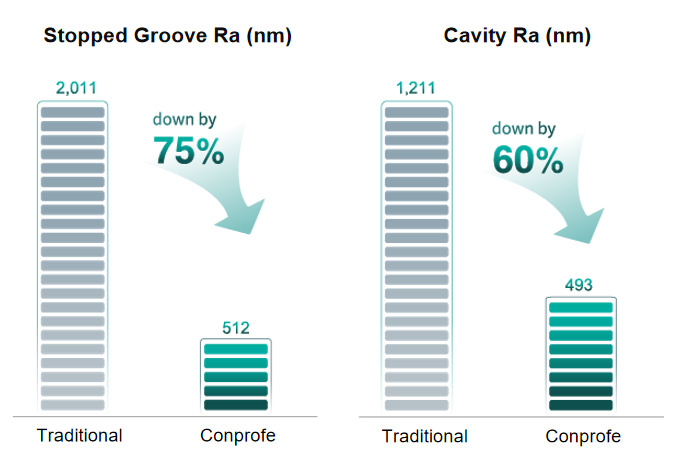

Blind groove roughness down by 75%
Cavity roughness down by 60%

1703749631293 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_07 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
