Forged Titanium Alloy Deep Blind Cross-Hole Drilling

Workpiece

Titanium Alloy
Hole: D1x10mm
Depth-Diameter Ratio 1:10

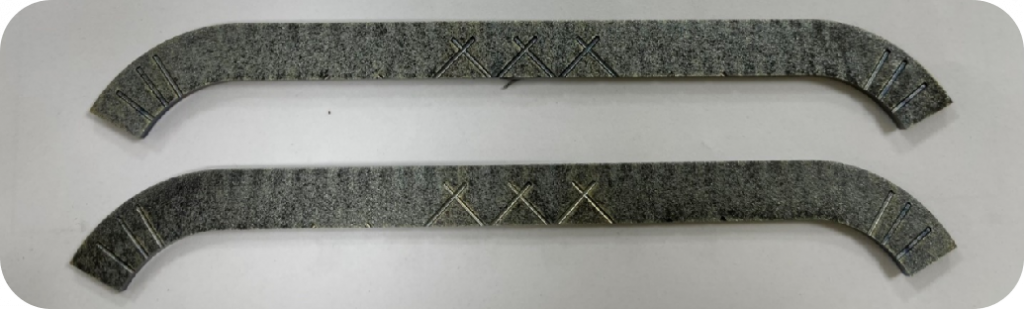

image-18 - Conprofe Technology Co., Ltd.

Challenges

Long cycle time
Poor hole wall quality: Heat discoloration, high roughness and severe burring

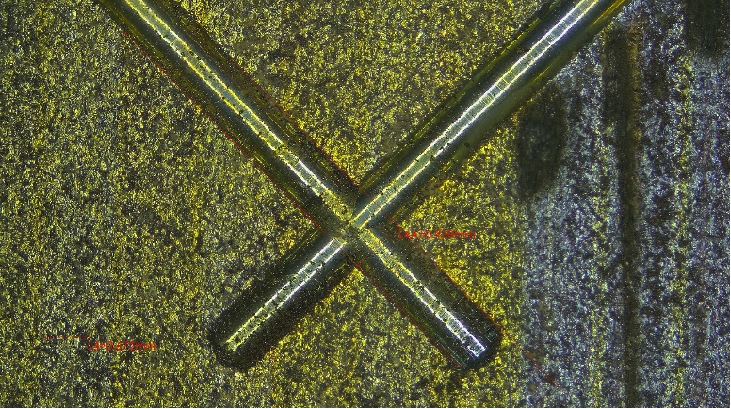

image-19 - Conprofe Technology Co., Ltd.

Benefits

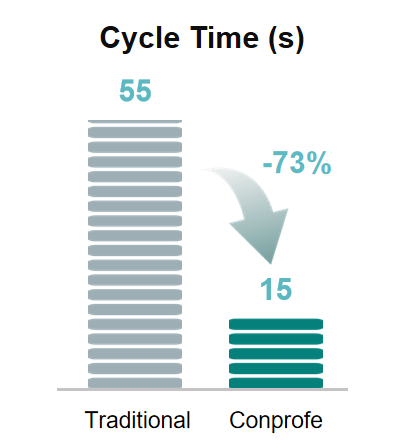

Cycle time down by 73%, from 55 seconds to 15 seconds
Smooth hole wall without discoloration
No observable burrs and no need for manual deburring

image-20 - Conprofe Technology Co., Ltd.

2a2465936460cc2c0262b73cca3ff36 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_30 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
