Quartz Glass Substrate Chamfer & Side Machining

Workpiece

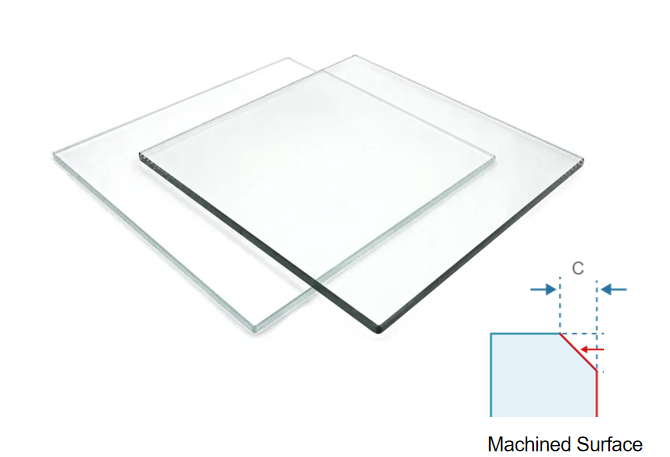

Quartz Glass Substrate
Chamfer and Side Machining
(Required Roughness Sa 150nm)

5c7f3b070c1a2eebb2c8677a995f272 - Conprofe Technology Co., Ltd.

Challenges

Low efficiency (C/T 120min)
Poor side wall surface quality

Benefits

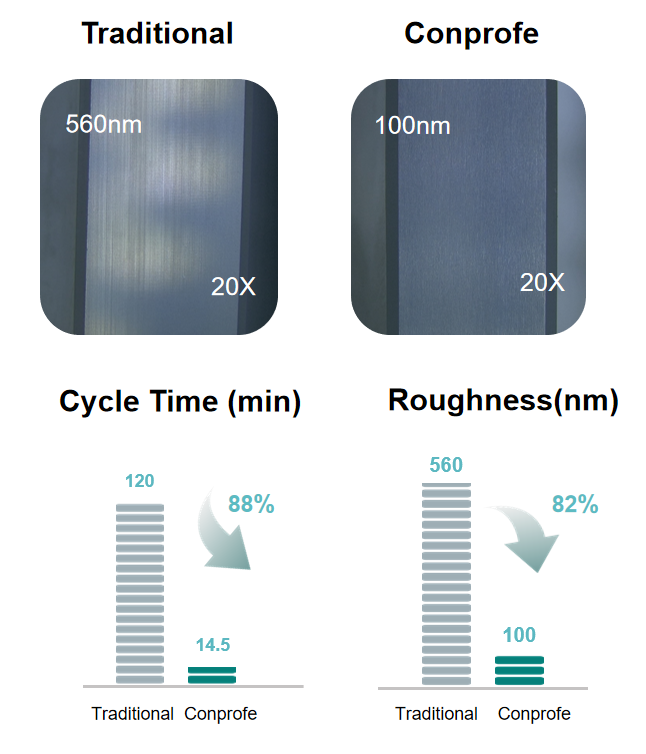

88% cycle time reduction, from 120min to 14.5min
Qualified roughness without grinding marks

微信图片_20231221133843 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_241 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
