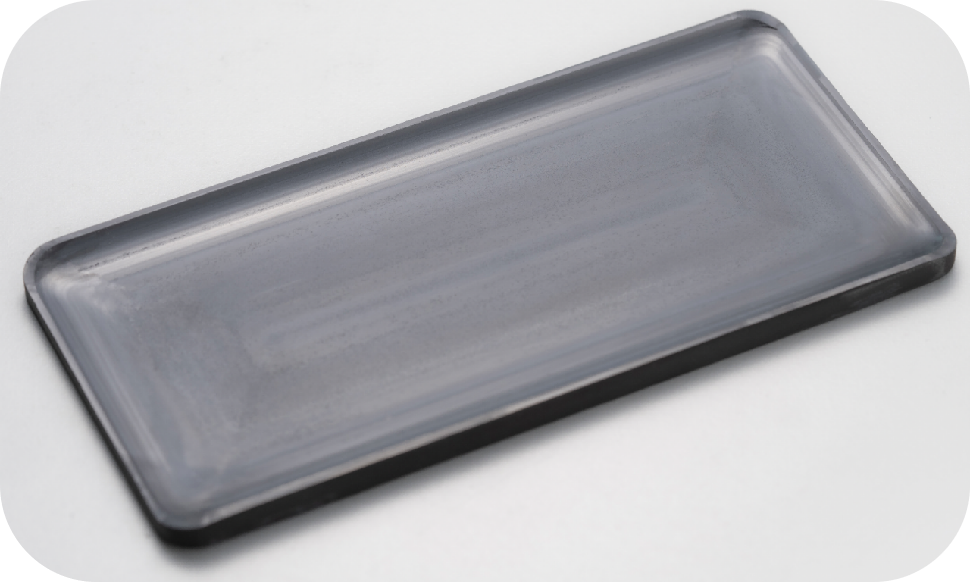

Silicon Nitride Plate Cover & Cavity Machining

Workpiece

Silicon Nitride
150x50x0.5mm

image-26 - Conprofe Technology Co., Ltd.

Challenges

Low machining efficiency
Vulnerable to chipping and high scrap rate
Short tool life

Benefits

Cutting force reduction with ultrasonic machining
Chipping decreases from 0.229mm to 0.02mm, 91%
Significant improvement in roughness and yield

1703147852737 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_35 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
