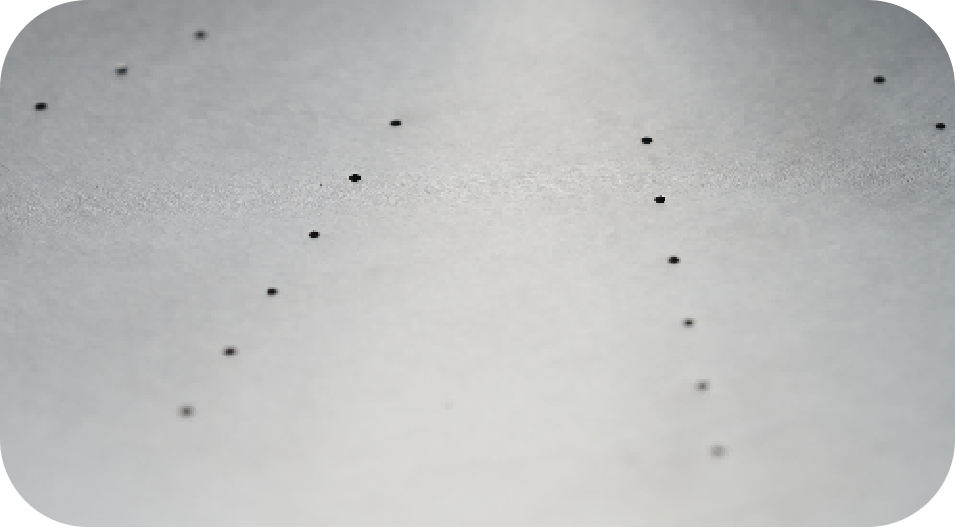

Single Crystal Silicon Showerhead Hole Drilling

Workpiece

Single Crystal Silicon
Hole: D0.65x15mm
Depth-Diameter Ratio: 23:1

image-11 - Conprofe Technology Co., Ltd.

Challenges

Vulnerable to hole edge chipping
Long cycle time
Short tool life

Benefits

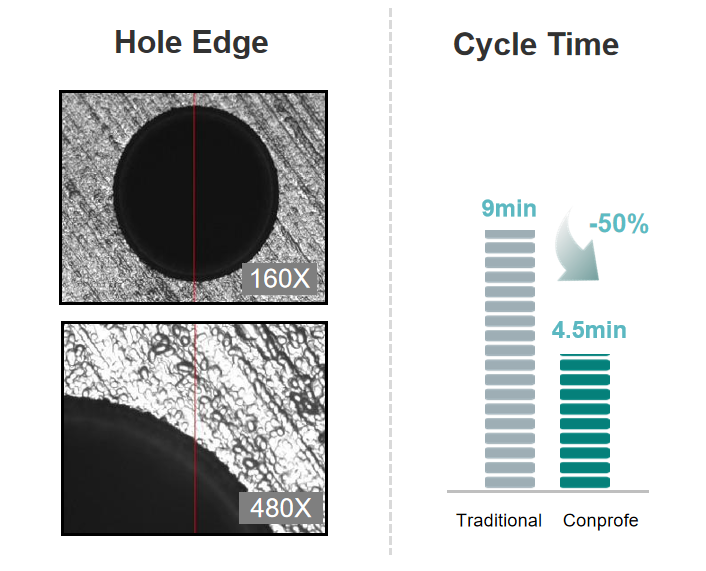

No chipping around hole edges
Cycle time reduced by 50%, from 9min to 4.5min per hole
Stable and continuous drilling of over 6,000 holes with one cutting tool
Significant improvement of hole roundness and positional tolerance

1703746757467-1 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_211 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
