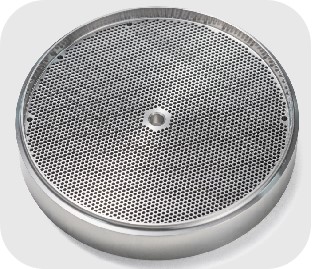

Stainless Steel Flight Engine Chiller Hole Drilling

Workpiece

304 Stainless Steel
Workpiece: φ192x30mm
Hole: φ2x30mm
Depth-Diameter Ratio 15:1

23 - Conprofe Technology Co., Ltd.

Challenges

Poor hole perpendicularity
Hole wall cutter mark from two-sided drilling
Low machining efficiency
Short tool life

Benefits

Cycle time down by 31.8%
Tool life up by 63 times to 3,180 holes/tool
Qualified hole dimensional accuracy

24-1 - Conprofe Technology Co., Ltd. — <strong>Cycle TimesHole<strong>

25 - Conprofe Technology Co., Ltd. — <strong>Cycle TimesHole<strong>

2023.12.29-Six-Industry-V1.5_18 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
