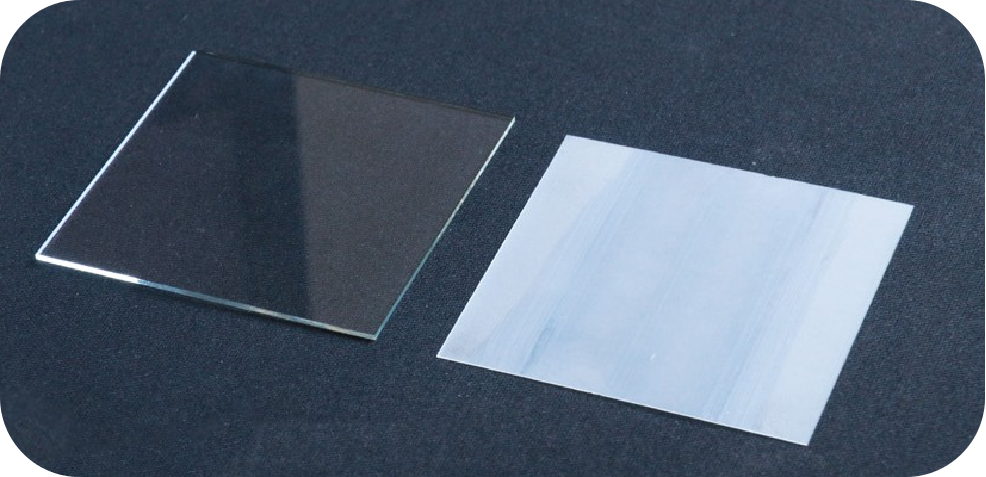

Ultra-thin Glass Flat Surface Machining

Workpiece

Glass
Thickness: 0.140mm → 0.068mm
Required Roughness Sa < 400nm

image-23 - Conprofe Technology Co., Ltd.

Challenges

Severe cutter marks
Thin glass without much room for polishing
Easy to crack, low yield

Benefits

Surface roughness Sa down by 52%, from 531nm to 254nm
No cutter marks or cracks

b2d9326aea3a73a4a3e24a39b23b031 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_32 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
