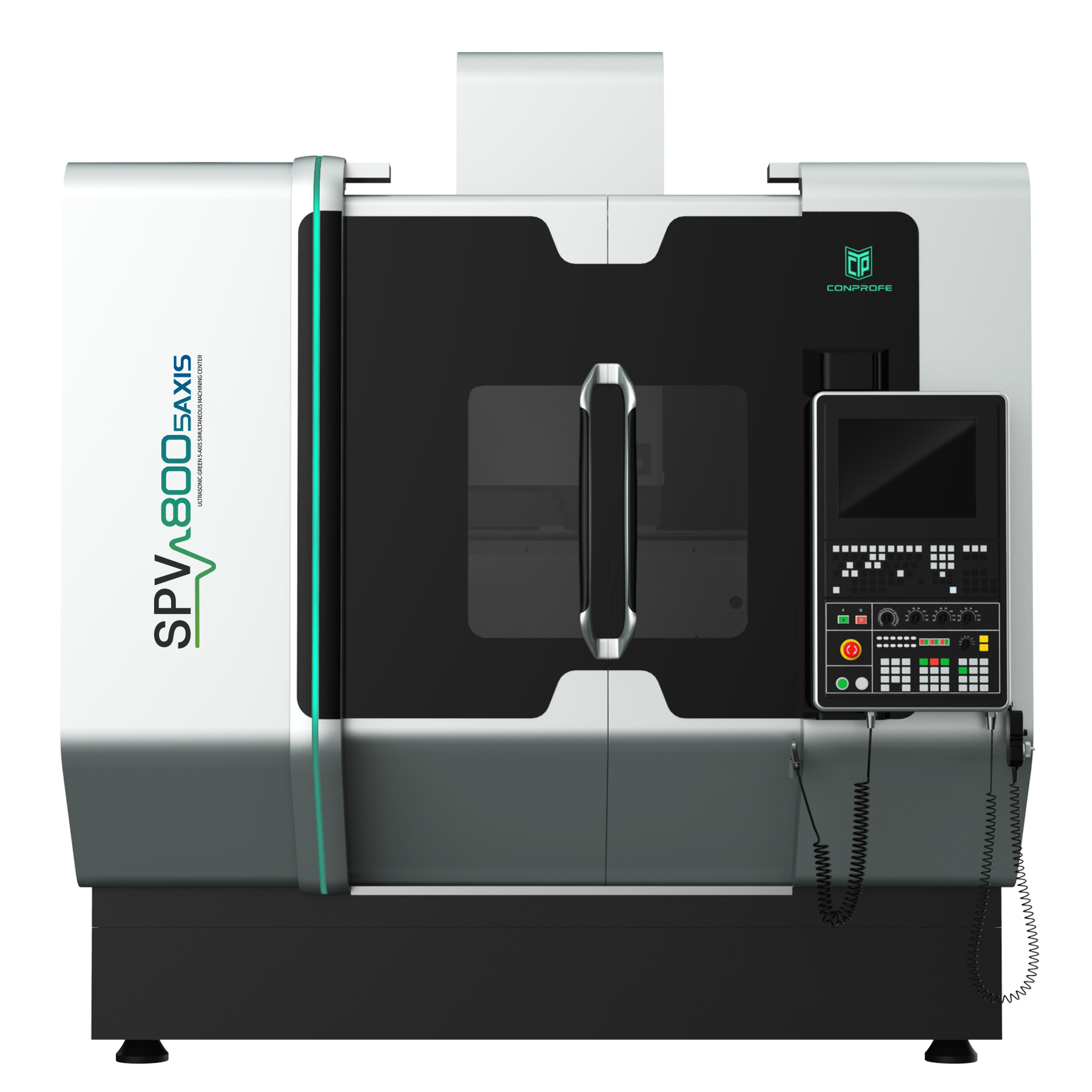

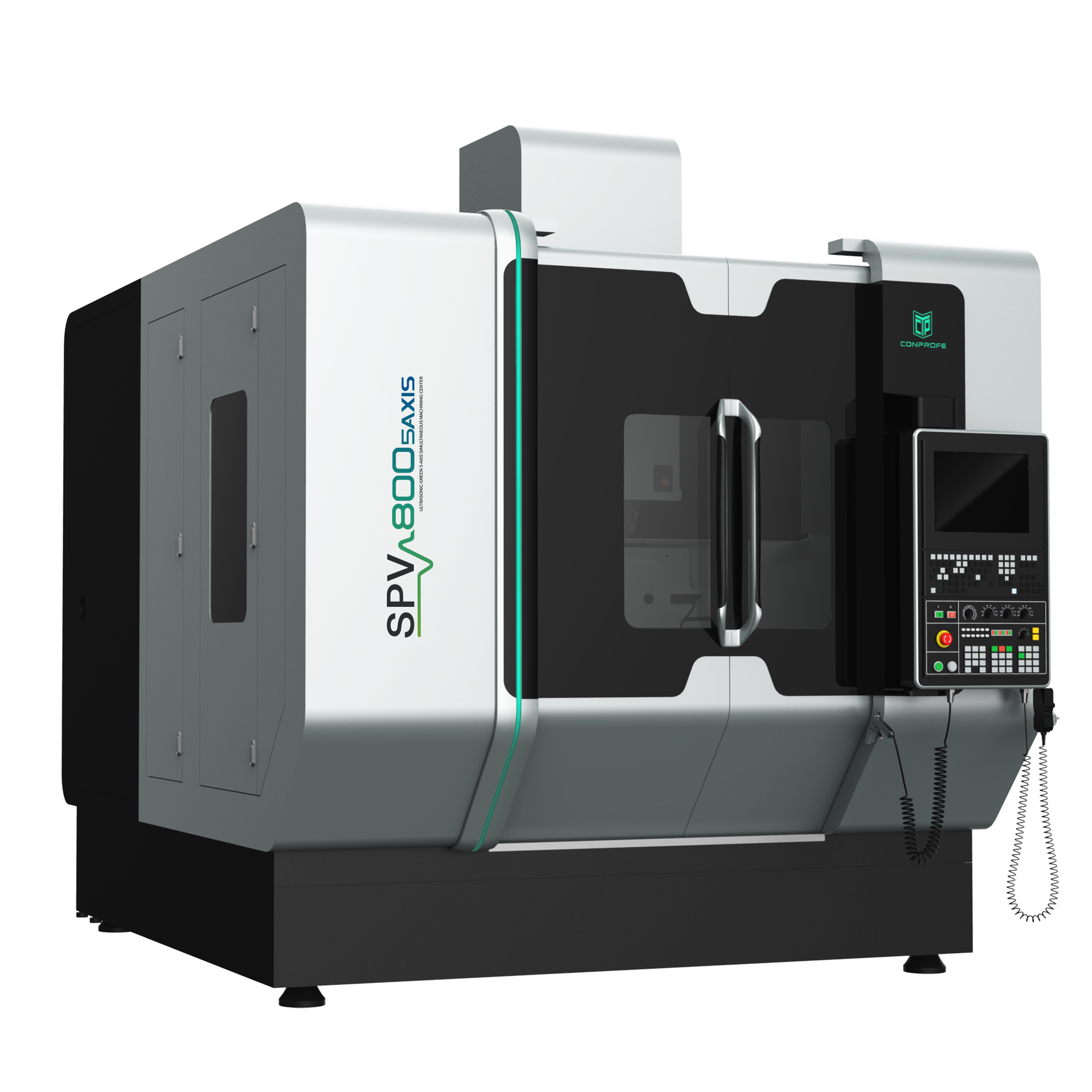

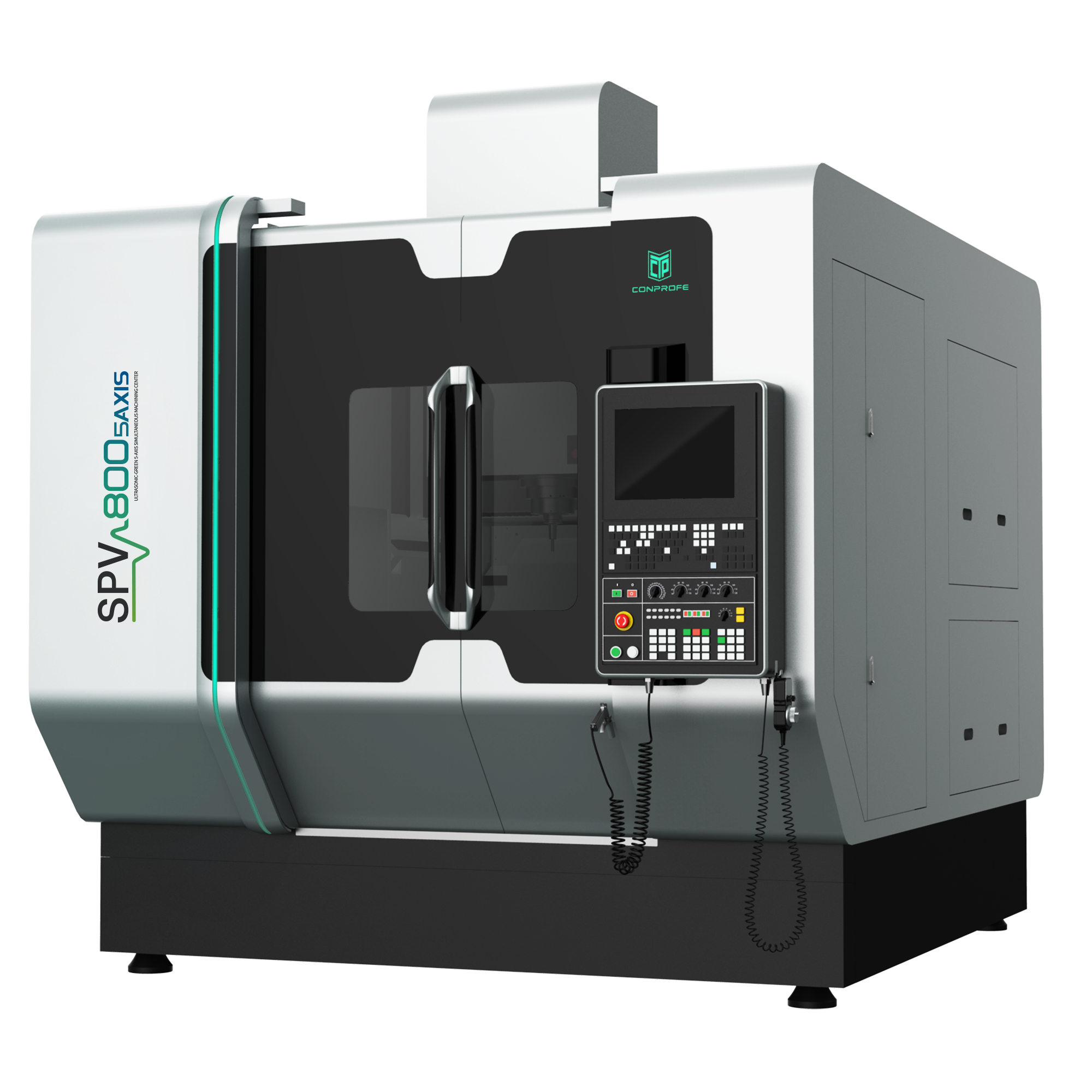

SPV800-5AXIS
Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials
| HSK-A63 | 5 | Φ800 | 0.008 mm | 0.005 mm |
| TAPER | AXIS | WORKTABLE | POSITIONING | REPEATABILITY |
Features
Spec Sheet
Video
Features
- Conprofe independently-developed Ultrasonic Spindle to solve challenges in machining hard-to-cut materials
- Optional Supercritical CO₂ or MQL Cooling System to realize clean machining
- Bridge gantry structure featuring tilting 5-axis, low gravity center, short overhang, super-strong rigidity and less thermal strain
- Multiple options of chain type tool magazines with Tool Holding Capacity of 24-120T
- With high power, high torque and high-speed ultrasonic spindle
- Optional automatic suppression system to mitigate risks in machining, e.g. burning and explosion
- With SIEMENS 840Dsl or SIMUERIK ONE 5-Axis simultaneous machining CNC system

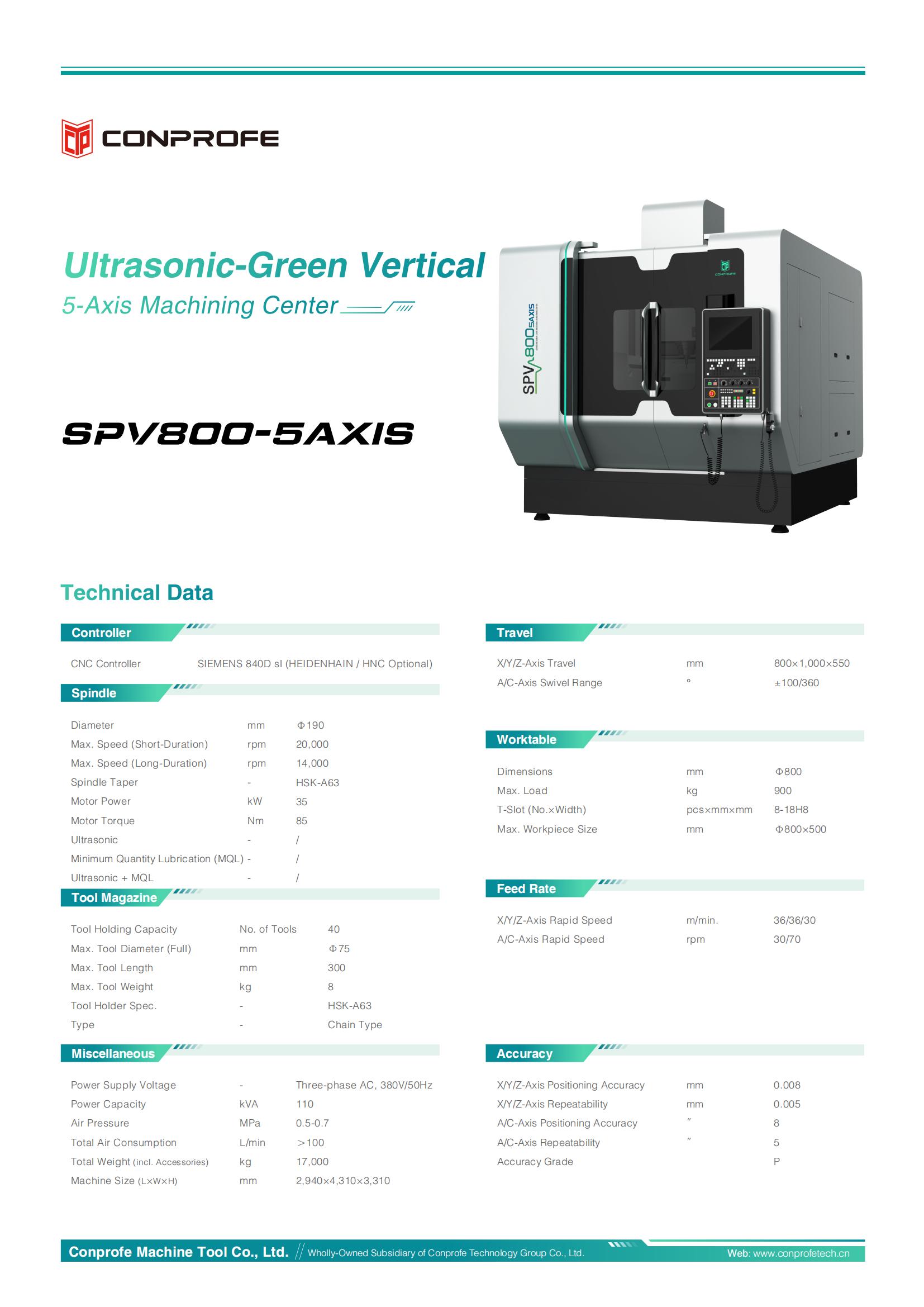

| Item | Unit | SPV800-5AXIS |
| Travel | ||
| X/Y/Z-Axis Travel | mm | 800×1,000×550 |
| Spindle Nose to Table | Mm | ±100/360 |
| Worktable | ||
| Dimensions | mm | Φ800 |
| Max. Load | kg | 900 |
| T-Slot (No. x Width) | pcs x mm | 8-18H8 |
| Max. Workpiece Size | mm | Φ800×500 |
| Spindle | ||
| Diameter | mm | Φ190 |
| Max. Speed (Short-Duration) | rmp | 20,000 |
| Max. Speed (Long-Duration) | rmp | 14,000 |
| Motor Power | kW | 35 |
| Motor Torque | Nm | 85 |
| Spindle Taper | – | HSK-A63 |
| Ultrasonic | – | / |
| Minimum Quantity Lubrication (MQL) | – | / |
| Ultrasonic + MQL | – | / |
| Feed Rate | ||
| X/Y/Z-Axis Rapid Speed | m/min | 36/36/30 |
| A/C-Axis Rapid Speed | rpm | 30/70 |
| Accuracy | ||
| X/Y/Z-Axis Positioning Accuracy | mm | 0.008 |
| X/Y/Z-Axis Repeatability | mm | 0.005 |
| A/C-Axis Positioning Accuracy | “ | 15 |
| A/C-Axis Repeatability | “ | 8 |
| Accuracy Grade | – | P |
| Tool Magazine | ||
| Tool Holding Capacity | No. of Tools | 40 |
| Max. Tool Diameter (Full) | mm | Φ75 |
| Max. Tool Length | mm | 300 |
| Max. Tool Weight | kg | 8 |
| Tool Holder Spec. | – | HSK-A63 |
| Type | – | Chain Type |
| Miscellaneous | ||
| Power Supply Voltage | – | Three-Phase AC, 380V/50Hz |
| Power Capacity | kVA | 110 |
| Air Pressure | MPa | 0.5-0.7 |
| Total Air Consumption | L/min | > 100 |
| Total Weight (incl. Accessories) | kg | 17,000 |

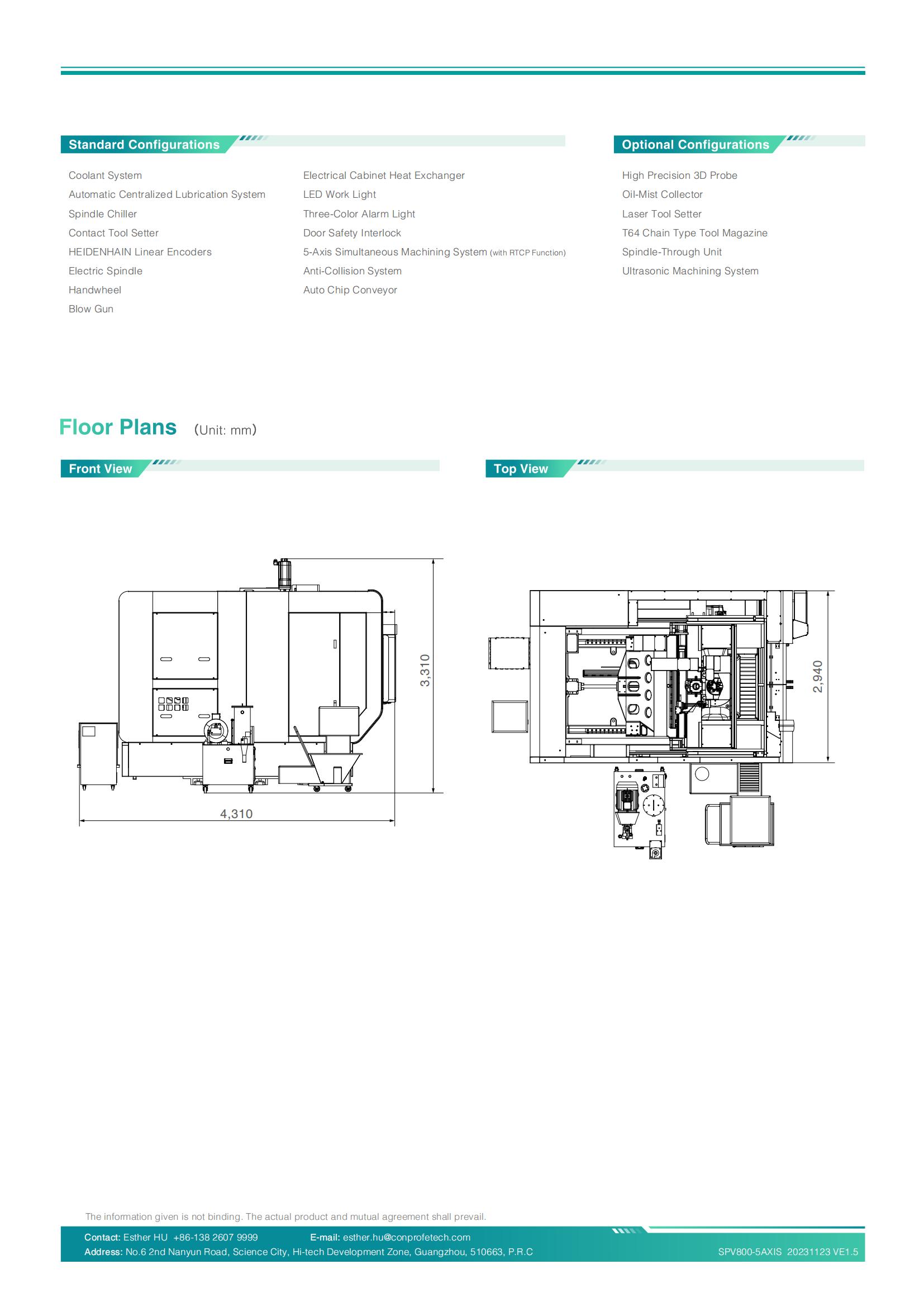

| Machine Size (LxWxH) | mm | 2,940 x 4,310 x 3,310 |
| Controller | ||
| CNC Controller | – | SIEMENS 840D sl (HEIDENHAIN / HNC Optional) |
