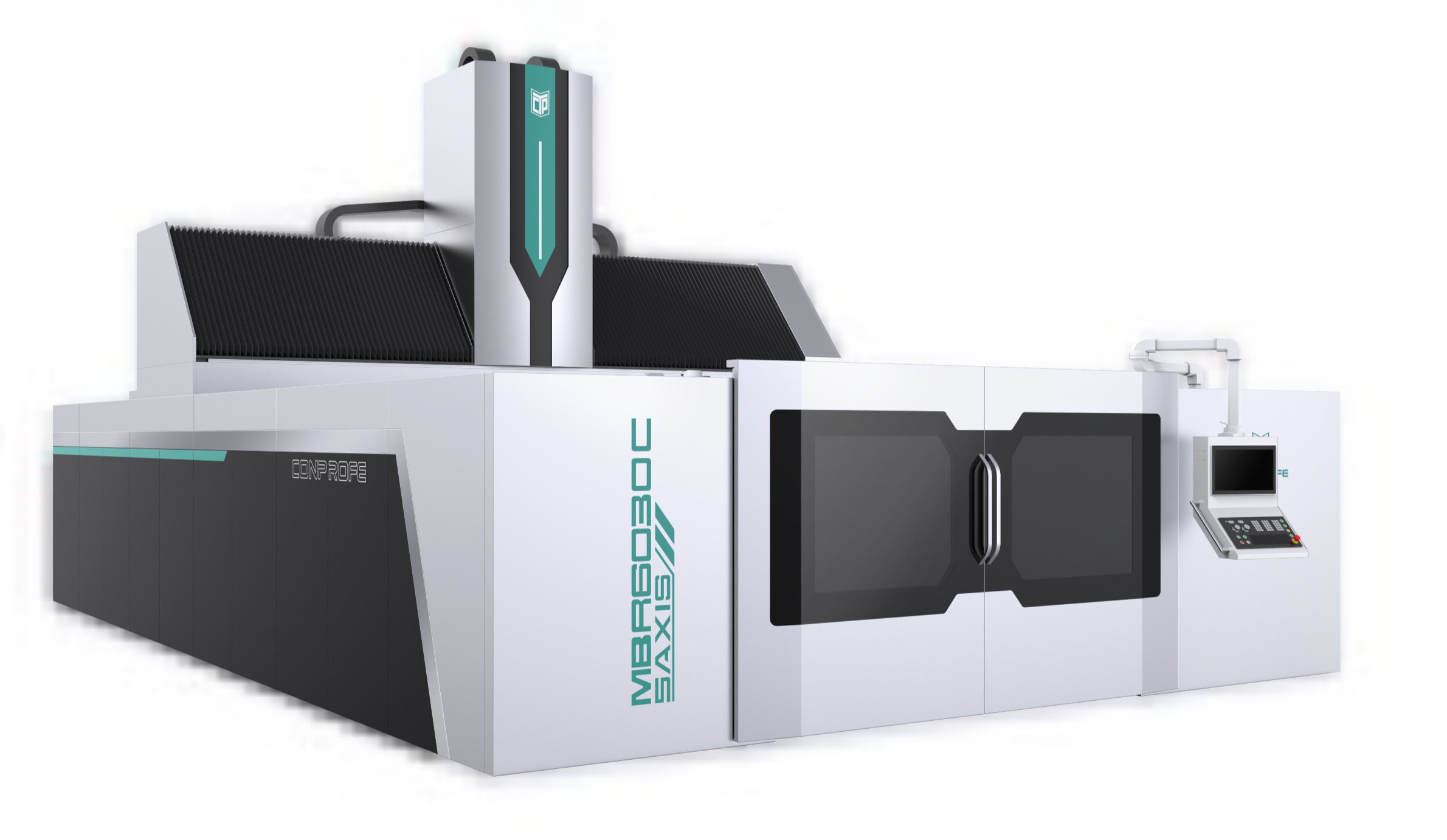

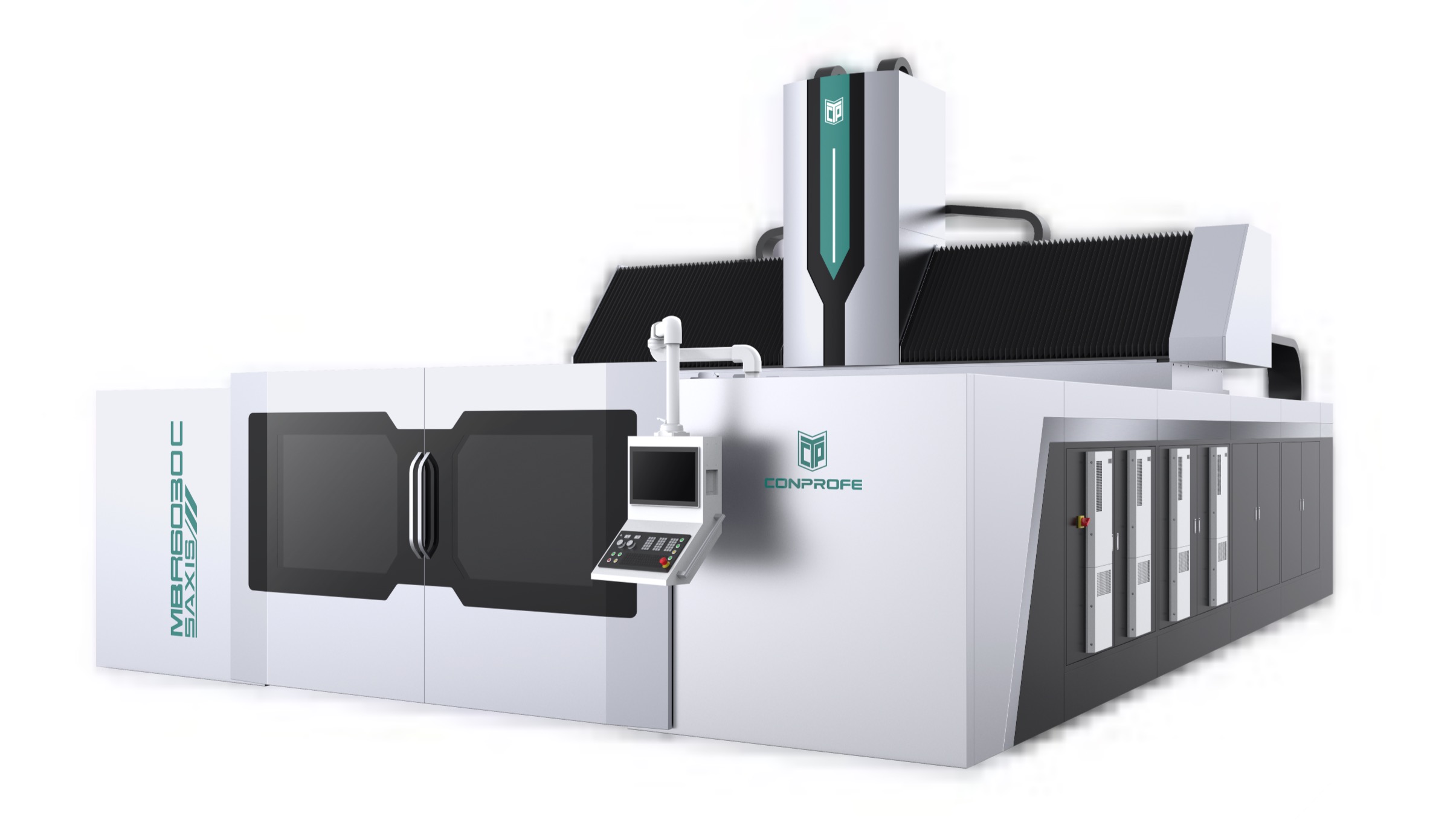

MBR6030-5AXIS
Suitable for machining composite materials, hard-brittle materials and hard-to-cut materials and offer significant improvement in machining Nomex honeycomb with small angle contour machining, resulting in efficient machining of complex 3D contours, removal of observable burrs or dust, as well as smooth surface and neat cut.
| Φ125/Φ250 | 5 | 6,000×3,000 | 0.02 mm | 0.015 mm |
| Tool Spec. | AXIS | WORKTABLE | POSITIONING | REPEATABILITY |
Features
Spec Sheet
Video
Features

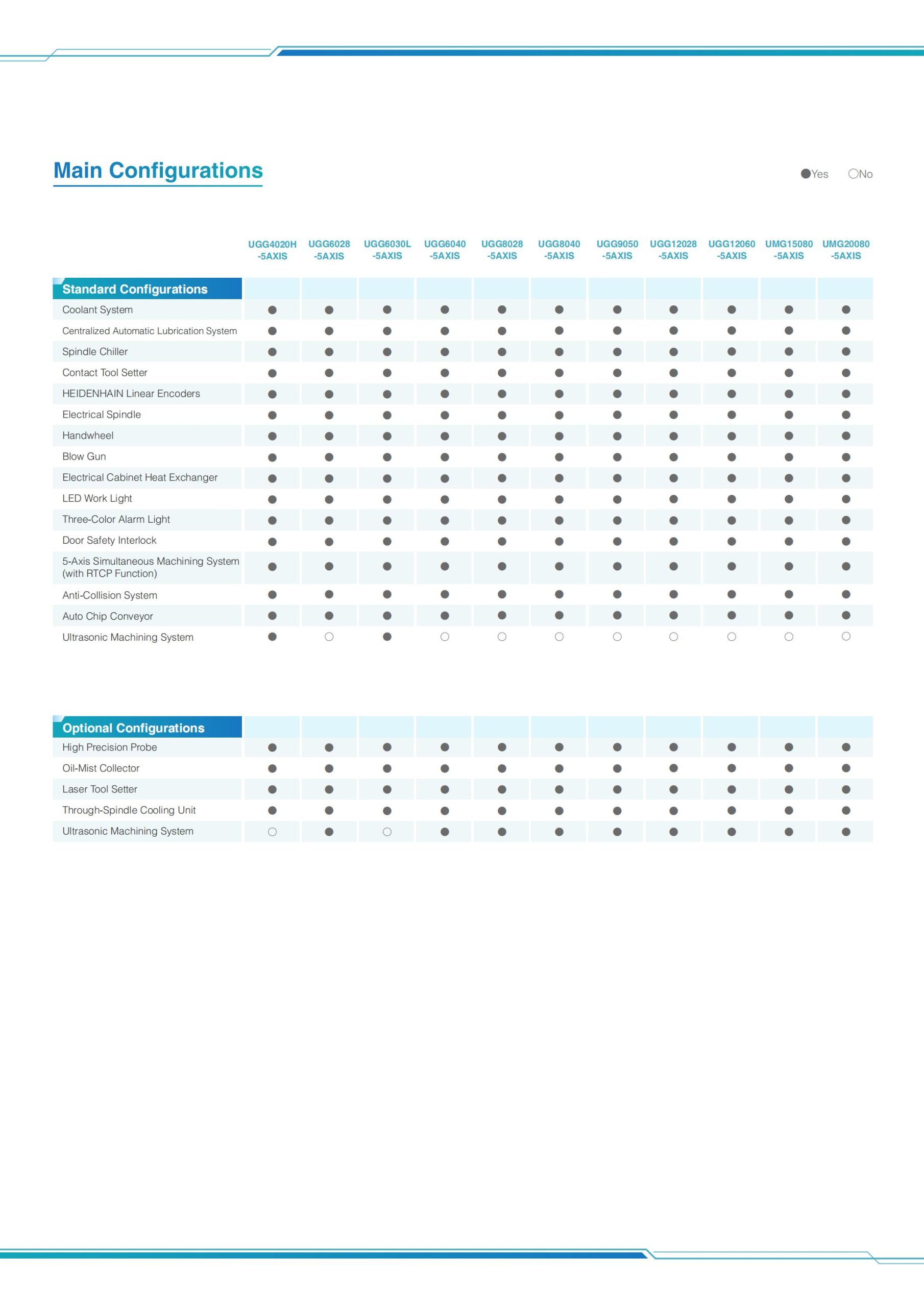

- Intelligent Ultrasonic machining system developed by Conprofe to tackle the challenges in machining hard-to-cut materials
- Supercritical Carbon Dioxide Cryogenic Cooling System and MQL Cooling System available for clean machining
- Four structures available (movable beam / movable beam, moving column / fixed beam/ fixed beam, movable column)
- X-axis travel range of 2~26m and Y-axis travel range 1.6~9m of for medium and large parts machining
- Z-axis travel range of 0.8~2m with large space for large workpiece machining range

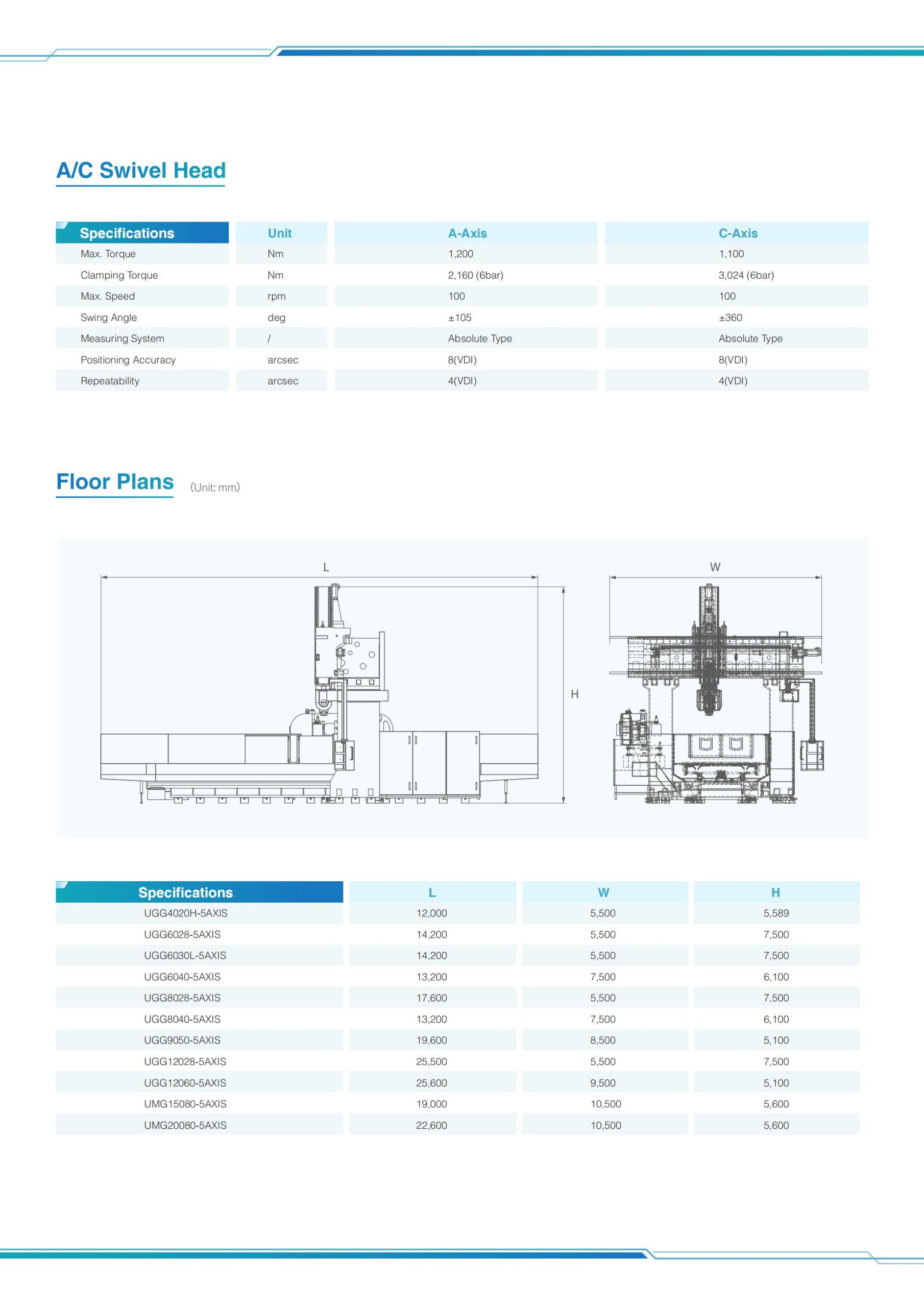

- World-class A/C swival heads

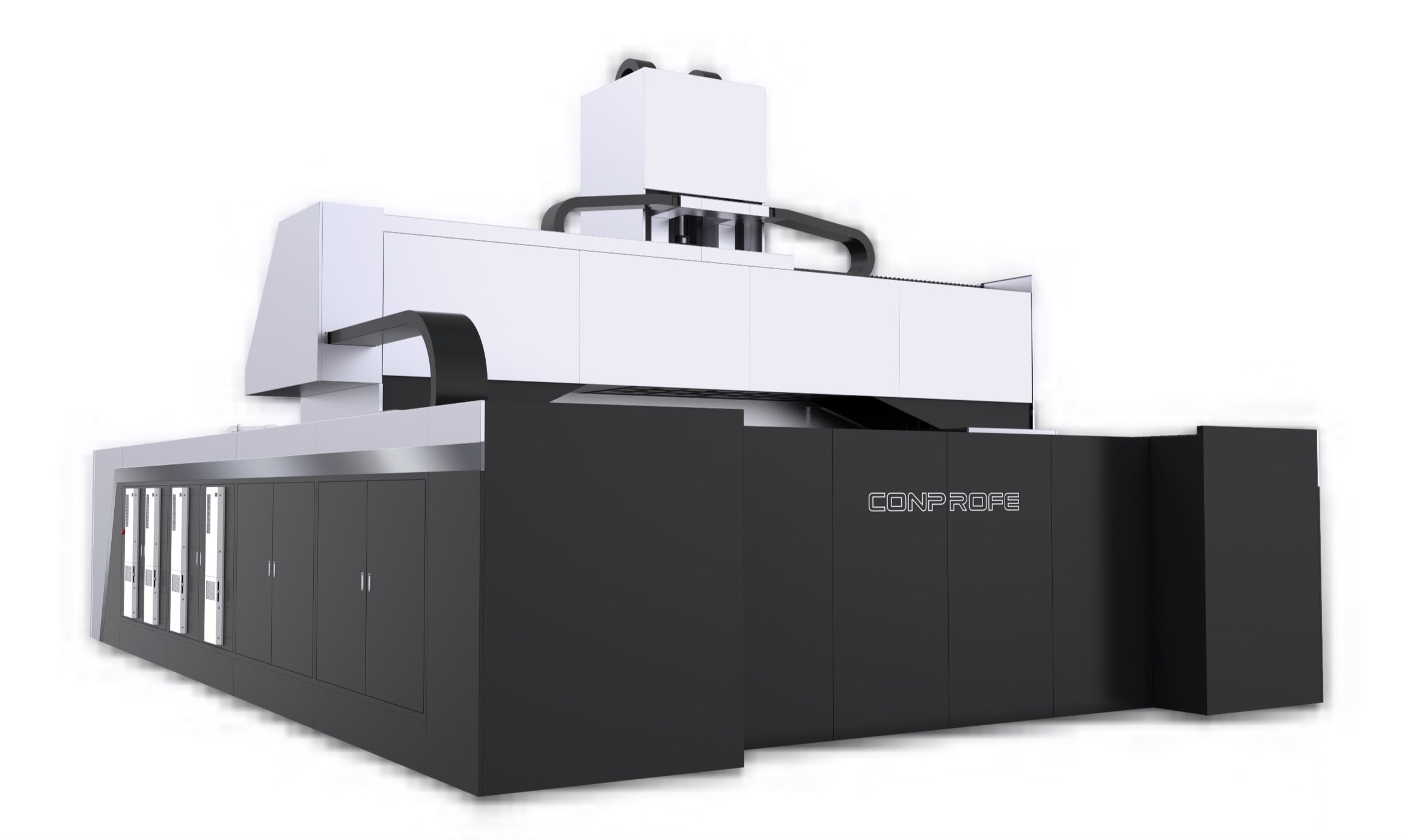

- Fully enclosed protection against dust and explosion available
- Applicable to honeycomb materials, carbon-fiber reinforced plastics and non-ferrous metals

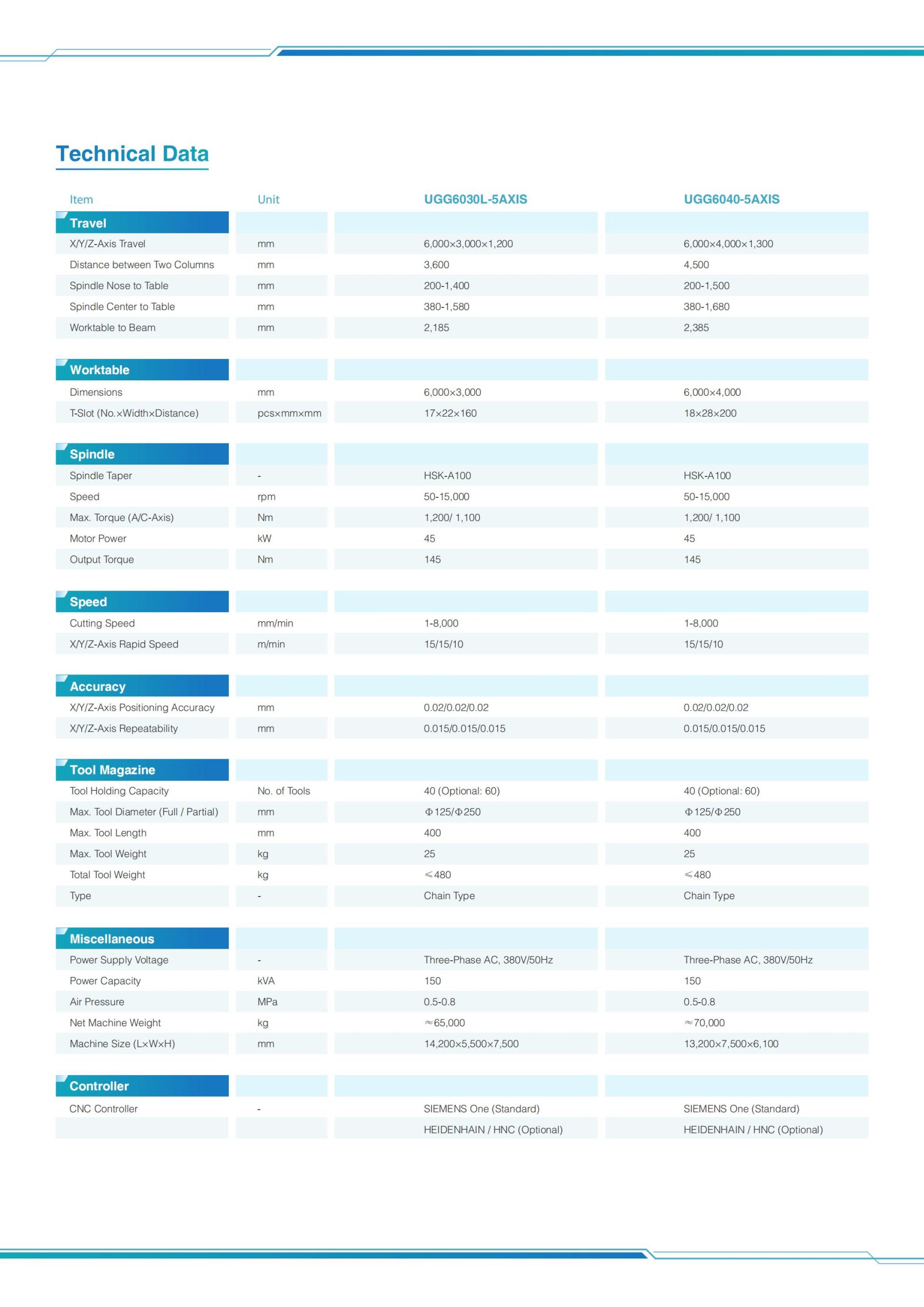

| Item | Unit | MBR6030-5AXIS |
| Travel | ||
| X/Y/Z-Axis Travel | mm | 6,000×3,000×1,200 |
| Distance between Two Columns | mm | 3,600 |
| Spindle Nose to Table | mm | 200-1,400 |
| Spindle Center to Table | mm | 380-1,580 |
| Worktable to Beam | mm | 2,185 |
| Worktable | ||
| Dimensions | mm | 6,000×3,000 |
| T-Slot (No. x Width x Distance) | pcsxmmxmm | 17x22x160 |
| Spindle | ||
| Spindle Taper | – | HSK-A 100 |
| Speed | rpm | 50-15,000 |
| Max. Torque (A/C-Axis) | Nm | 1,200/1,100 |
| Motor Power | kW | 45 |
| Output Torque | Nm | 145 |
| Speed | ||
| Cutting Speed | mm/min | 1-8,000 |
| X/Y/Z-Axis Rapid Speed | m/min | 15/15/10 |
| Accuracy | ||
| X/Y/Z-Axis Positioning Accuracy | mm | 0.02/0.02/0.02 |
| X/Y/Z-Axis Repeatability | mm | 0.015/0.015/0.015 |
| Tool Magazine | ||
| Tool Holding Capacity | No. of Tools | 40 (Optional: 60) |
| Max. Tool Diameter (Rated/Max.) | mm | Φ125/Φ250 |
| Max. Tool Length | mm | 400 |
| Max. Tool Weight | kg | 25 |
| Total Tool Weight | kg | ≤480 |
| Type | – | Chain Type |
| Miscellaneous | ||
| Power Supply Voltage | – | Three-Phase AC, 380V/50Hz |
| Power Capacity | kVA | 150 |
| Air Pressure | MPa | 0.5-0.8 |
| Net Machine Weight | kg | ≈65,000 |
| Machine Size (LxWxH) | mm | 14,200 x 5,500 x 7,500 |
| Controller | ||
| CNC Controller | – | SIEMENS One (Standard) HEIDENHAIN / HNC (Optional) |
