UGV100D-5AXIS
Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials
| HSK-E25 | 5 | Φ100 | 0.005 mm | 0.003 mm |
| TAPER | AXIS | WORKTABLE | POSITIONING | REPEATABILITY |
Features
Spec Sheet
Video
Features
- Intelligent Ultrasonic Machining System developed by Conprofe to reduce cutting force and tackle the challenges in machining dental materials
- MQL (Minimum Quantity Lubrication) System available for clean machining
- Breakthrough in new technology for polishing-free titanium alloy abutment machining
- Premium gray cast iron bed with excellent rigidity and anti-vibration properties, ensuring high-precision machining
- Positioning accuracy of 5μm, repeatability of 3μm
- High-precision A/B Axis, hollow stainless steel body to reduce cable entanglement, with repeatability of 8 arc seconds
- Built-in workpiece storage system for automated cyclic production on a single machine
- Complete stainless steel cover for machine internal protection
- Built-in tool magazine capable of automatic tool change and measurement
- Electrical system paired with heat exchange controller for constant temperature adjustment to ensure stable operation
- Intelligent human-machine interaction system
| Item | Unit | UGV100D-5AXIS |
| Travel | ||
| X/Y/Z-Axis Travel | mm | 350x110x130 |
| A/B-Axis Swivel Range | ° | ±120°/360° |
| Worktable | ||
| Dimensions | mm | Φ100 |
| Max. Load | kg | 5 |
| Max. Workpiece Size | mm | Φ90×30 |
| Spindle | ||
| Diameter | mm | Φ80 |
| Max. Speed (Short-Duration) | rmp | 36,000 |
| Max. Speed (Long-Duration) | rmp | 24,000 |
| Spindle Taper | – | HSK-E25 |
| Ultrasonic | – | Standard |
| Minimum Quantity Lubrication (MQL) | – | Optional |
| Ultrasonic + MQL | – | Optional |
| Feed Rate | ||
| X/Y/Z-Axis Rapid Speed | m/min | 12/12/12 |
| A/C-Axis Rapid Speed | rpm | 60/40 |
| Accuracy | ||
| X/Y/Z-Axis Positioning Accuracy | mm | 0.005 |
| X/Y/Z-Axis Repeatability | mm | 0.003 |
| A/B-Axis Positioning Accuracy | “ | ≤40 |
| A/C-Axis Repeatability | “ | ≤8 |
| Tool Magazine | ||
| Tool Holding Capacity | No. of Tools | 4 |
| Max. Tool Diameter (Full) | mm | Φ10 |
| Max. Tool Length | mm | 40 |
| Max. Tool Weight | kg | 5 |
| Type | – | Built-in Type |
| Miscellaneous | ||
| Power Supply Voltage | – | Three-Phase AC, 380V/50Hz |
| Power Capacity | kVA | 9 |
| Air Pressure | MPa | 0.4-0.7 |
| Total Air Consumption | L/min | 5, 50-300 (with MQL) |
| Total Weight (incl. Accessories) | kg | 500 |
| Machine Size (LxWxH) | mm | 1,330 x 1,150 x 1,370 |
| Controller | ||
| CNC Controller | – | C50 |

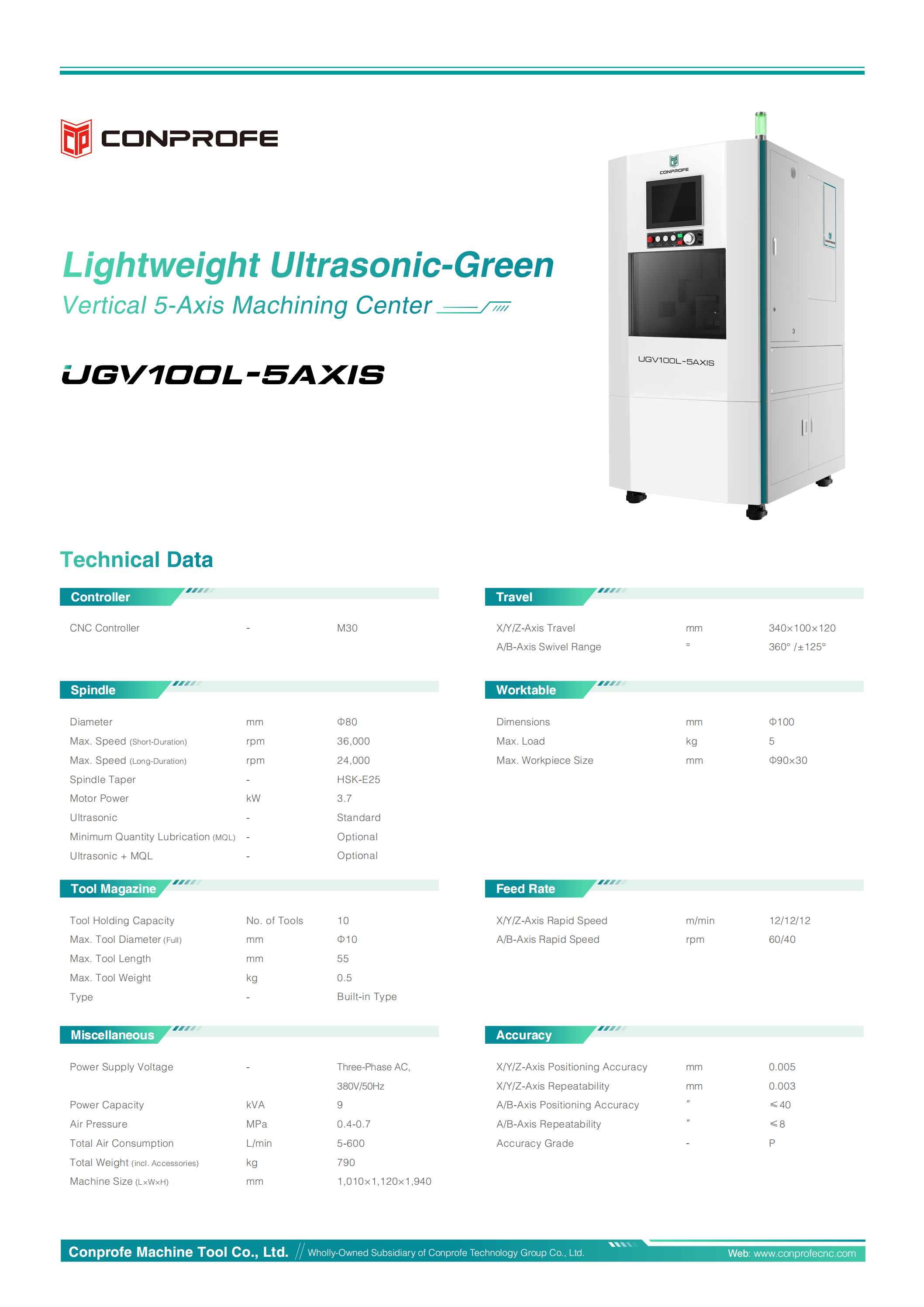

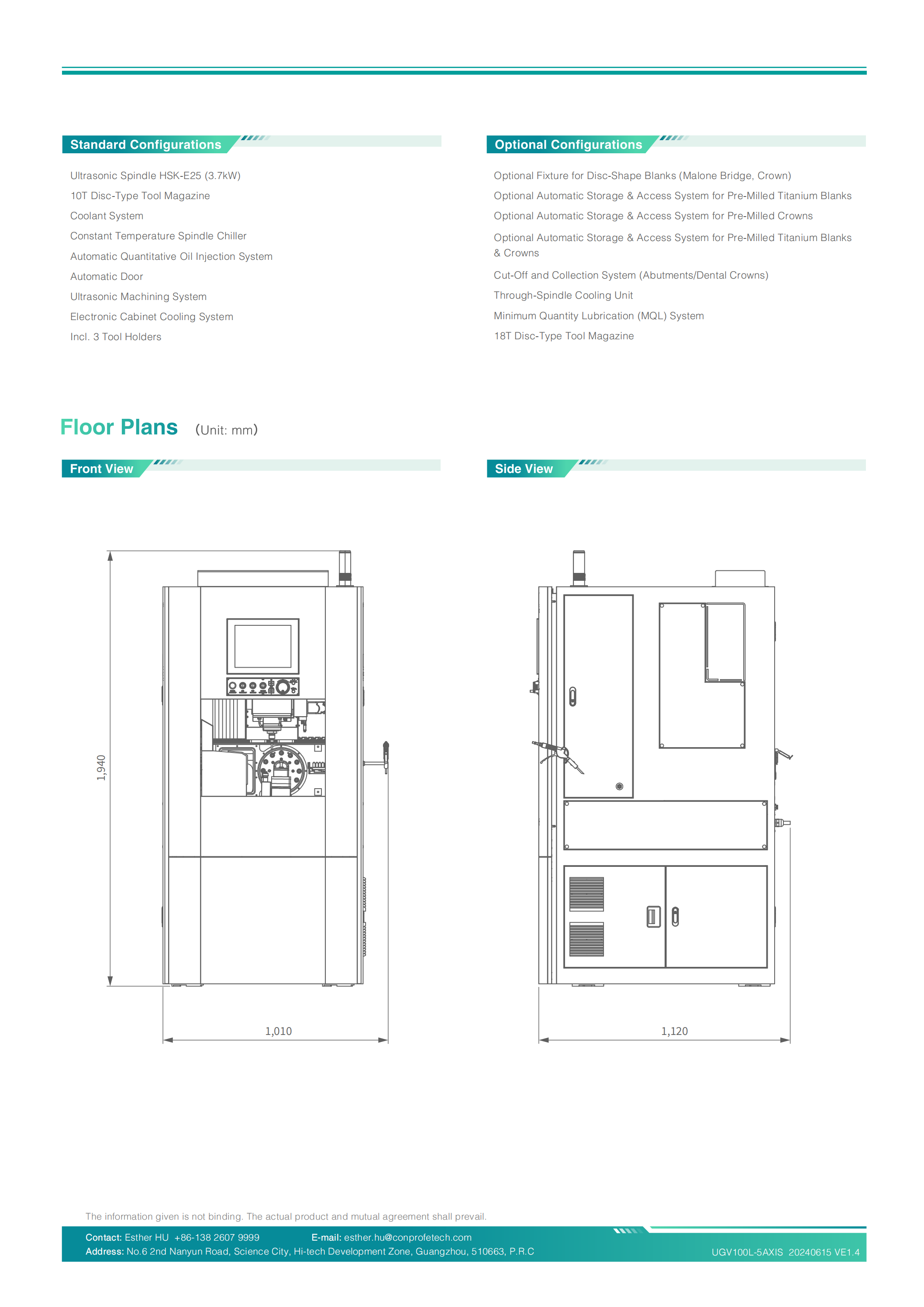

Spec Sheet
Click here to download >>> UGV100D-5AXIS~Desktop Ultrasonic-Green Vertical 5-Axis Machining Center~20240308 VE1.1
