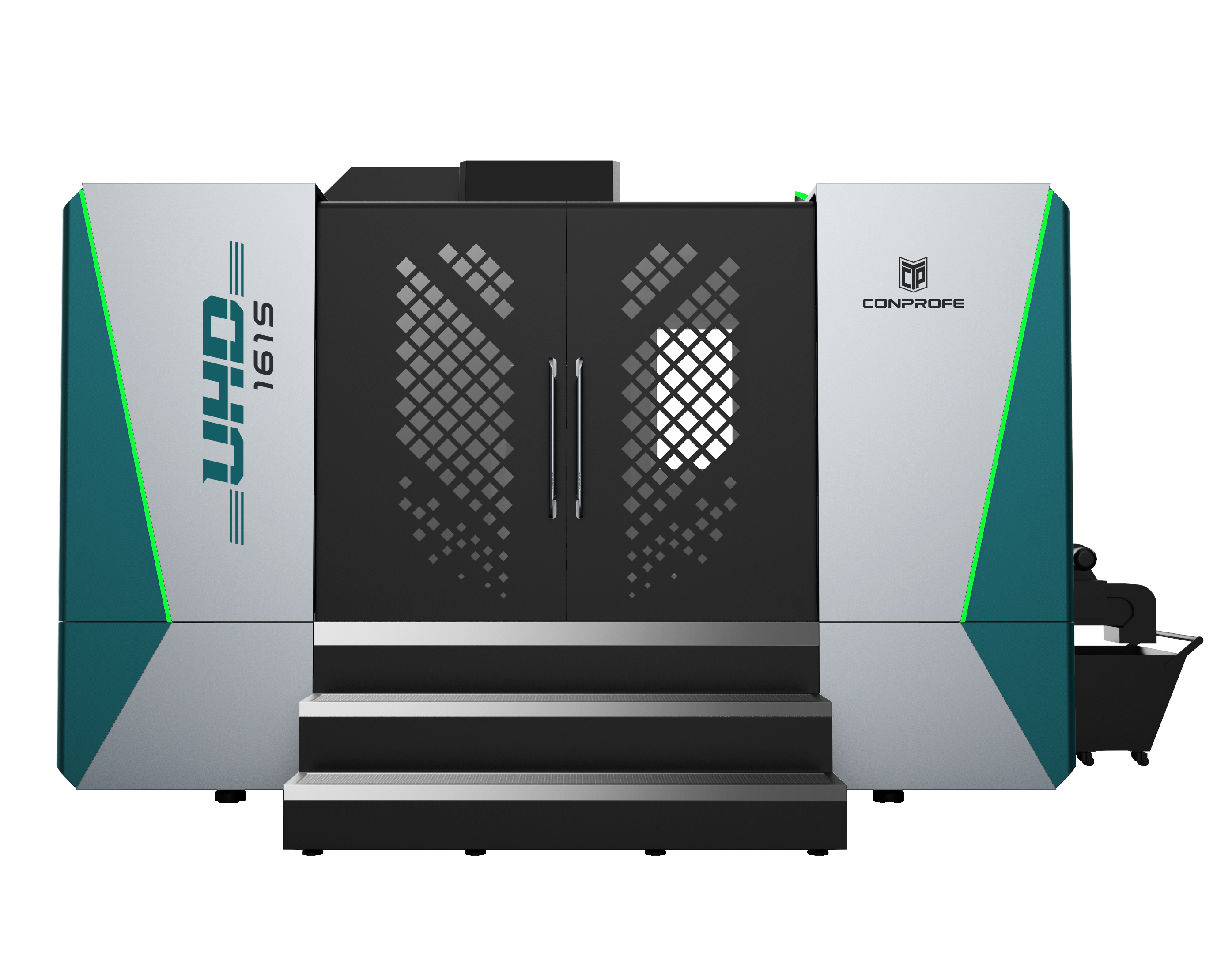

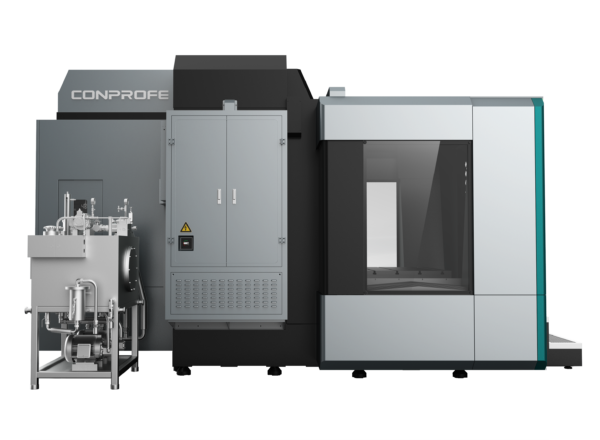

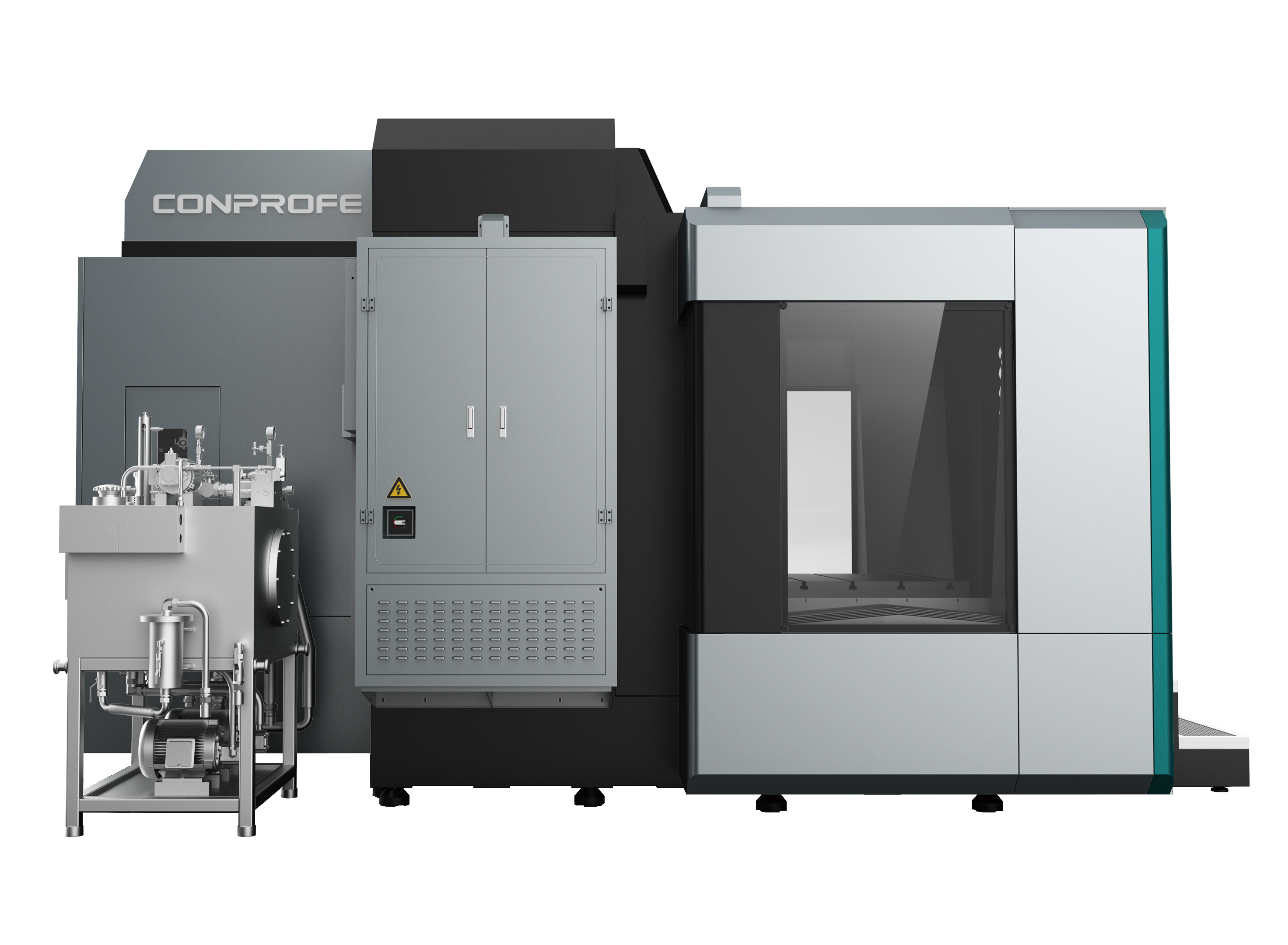

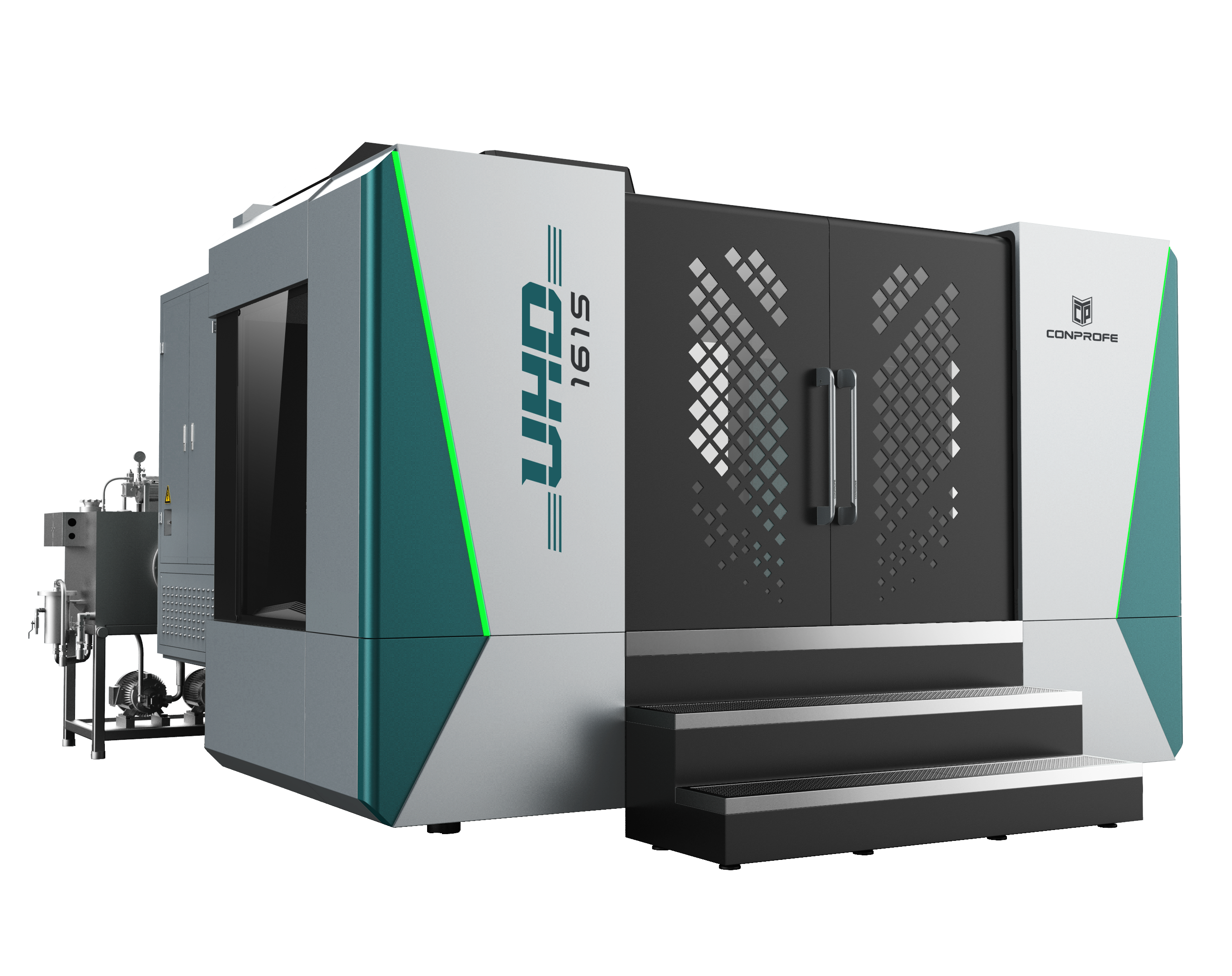

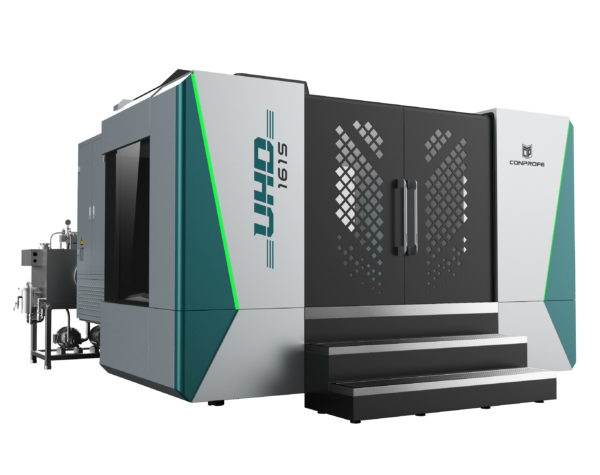

UHD-1615
As a state-of-the-art machine tool, UHD-1615 represents significant technological breakthroughs in efficient and long-life precision machining, particularly for ultra-deep hole machining of materials with hardness above HRC50 and nano-level surface quality, which is applicable in various industries including molds, automotive, oil pumps, textile machinery, medical devices, and mining and petroleum machinery.
| 1,600/1,200 mm | 1,600×1,200 | 1,500 mm | 20 μm |
| X/Y-AXIS TRAVEL | WORKTABLE | MAX. DRILLING DEPTH | FILTERING ACCURACY |
Features
Spec Sheet
Video
Features
- High efficiency and high quality attributed to Ultrasonic Spindle and Minimum Quantity Lubrication (Through-Spindle) System to achieve higher drilling efficiency, longer tool life, and better hole wall quality while ensuring drilling accuracy
- High drilling performance with outstanding length-diameter ratio (62:1 for HRC50 mold steel and 187:1 for ordinary steel)
- Fully closed cover design against dust and explosion available
- X/Y-axis multiple protection to extend the service life of guide rail and its screw rod
- Fanuc controller equipped with high-torque servo spindle motor
| Item | Unit | UHD-1615 |
| Worktable | ||
| Dimensions | mm | 1,600×1,200 |
| Load | kg | 10,000 |
| T-Slot (No. x Width x Distance) | pcs-mmxmm | 5-22×250 |
| Spindle | ||
| Diameter | mm | 150 |
| Max. Speed | rpm | 8,000 |
| Motor Power | kW | 11 |
| Spindle Taper | – | BT40 |
| Drilling Spec. & Travel | ||
| Drilling Diameter Range | mm | Φ3-Φ35 |
| Max. Drilling Depth | mm | 1,500 |
| X/Y-Axis Travel | mm | 1,600/1,200 |
| Feed Rate | ||
| Spindle | mm/min | 0-300 |
| X/Y/Z-Axis Rapid Speed | m/min | 10 |
| 3-Axis Motor Power | kW | 3/3/3 |
| High-Pressure Coolant Filtration System | ||
| Filtering Accuracy | μm | 20 |
| Oil Pump Motor Power | kW | 5.5+5.5 |
| Oil Circulating Pump Power | kW | 1.1 |
| Cutting Oil Pump Pressure | MPa | 1-8 |
| Cutting Oil Pump Max. Flow | L/min | 98 |
| Oil Temperature | / | 20-45°C |
| Cutting Oil Tank Capacity | L | 600 |
| Miscellaneous | ||
| Power Supply Voltage | – | Three-Phase AC, 380V±10%/50Hz±2% |
| Compressed Air Pressure | MPa | 0.5-0.7 |
| Machine Size (LxWxH) | mm | 5,900 x 6,250 x 3,410 |
| Total Power | kW | 32 |
| Machine Weight | kg | 15,000 |
| Controller | ||
| CNC Controller | – | Fanuc OI-MF PLUS |
Spec Sheet

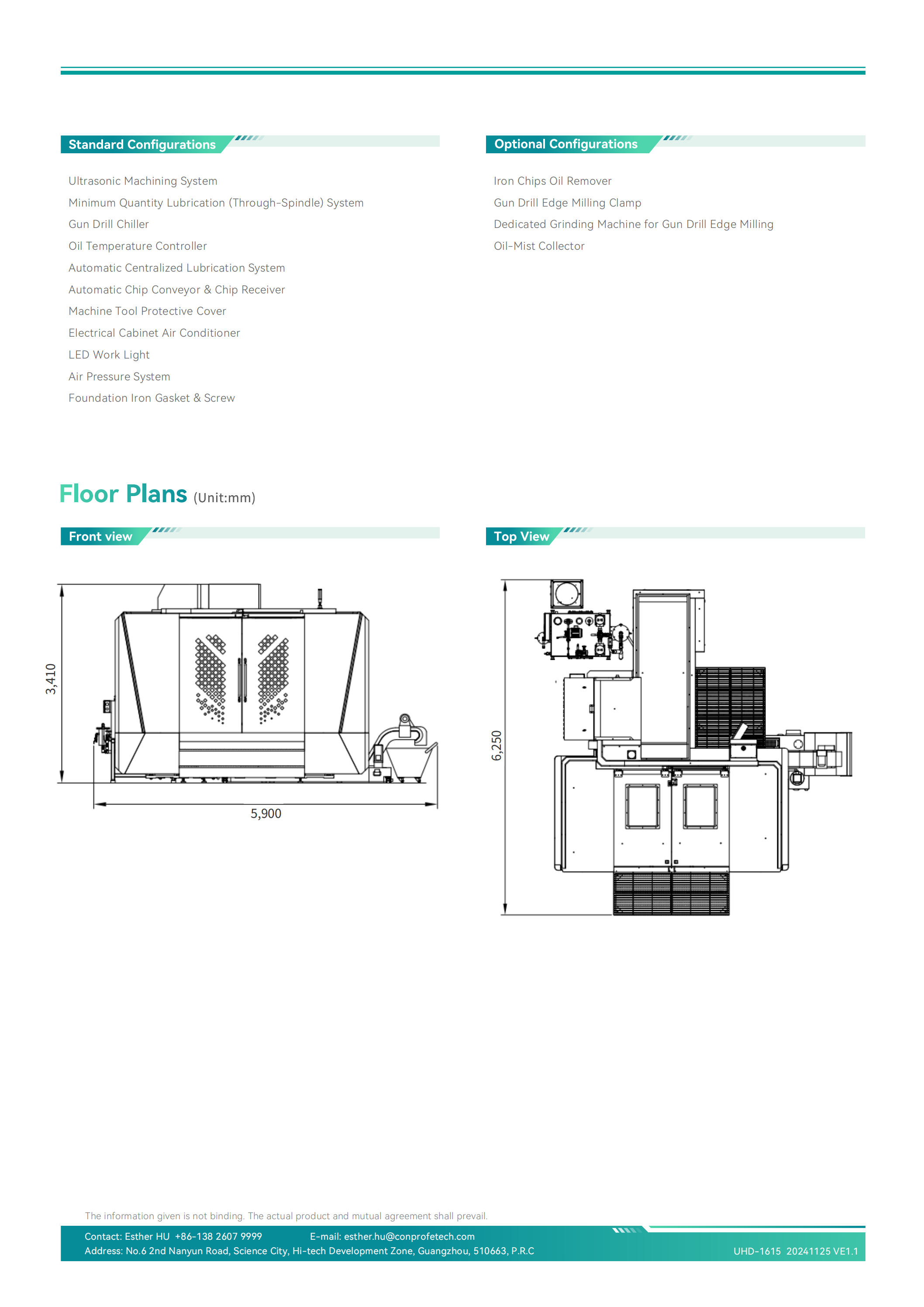

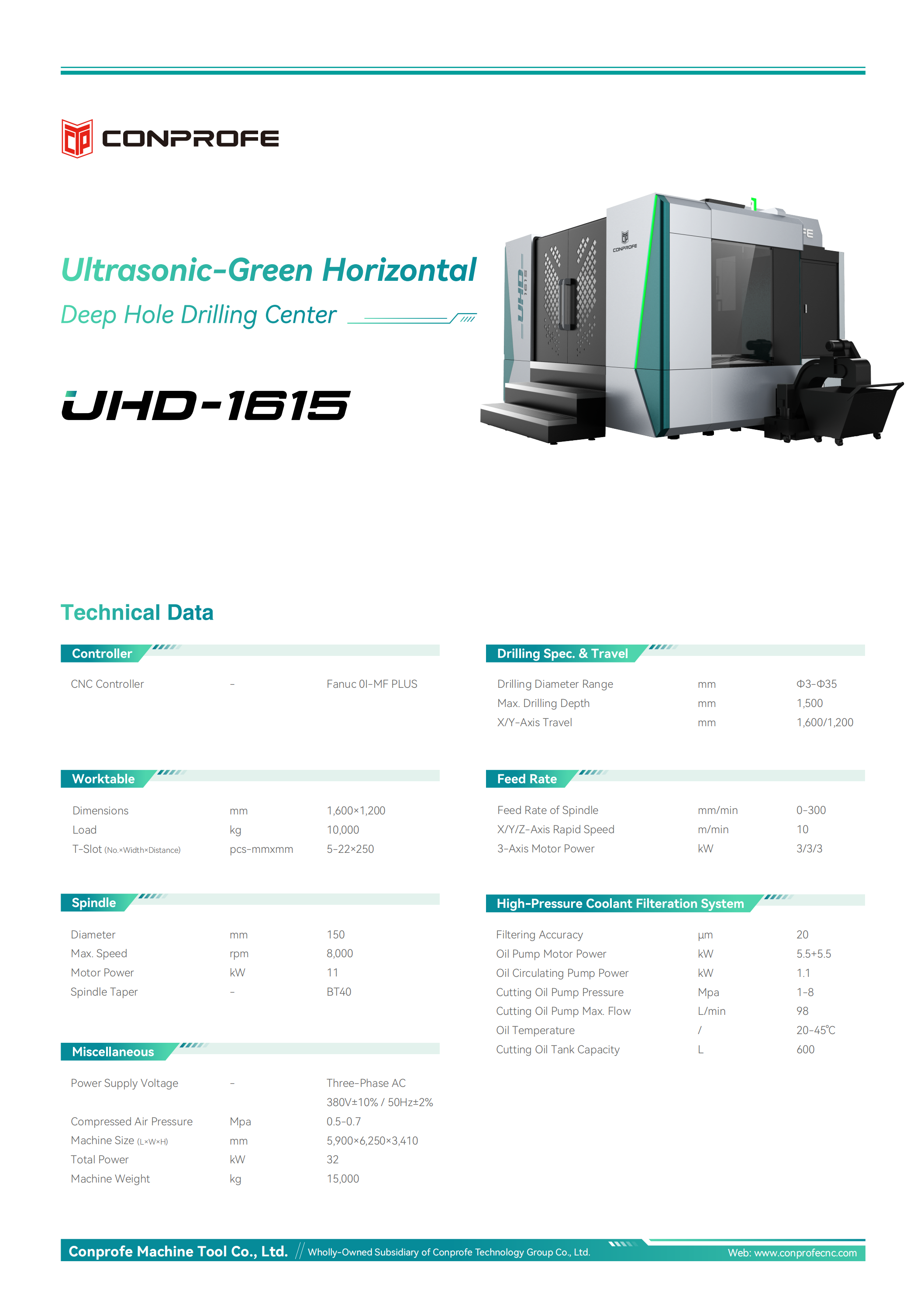

Click here to download >>> UHD1615 Horizontal Deep Hole Drilling Center~20241125 VE1.1
