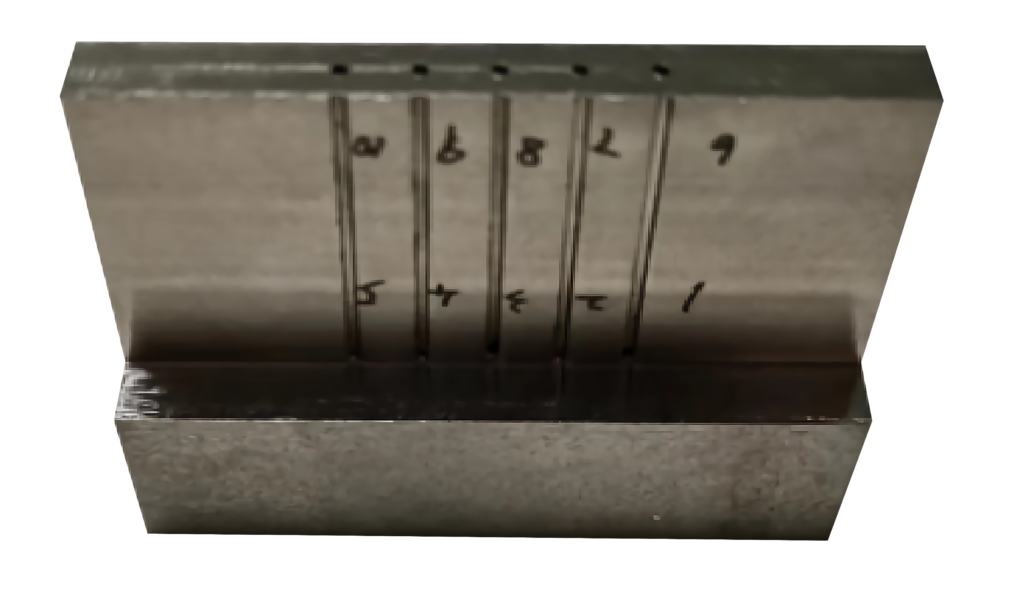

Titanium Alloy Hole Drilling

Workpiece

Titanium Alloy TC4
Hole: φ1.0x30mm
Depth-Diameter Ratio: 30:1

2f6c749cf53445100210ed7c690db19 - Conprofe Technology Co., Ltd.

Challenges

Low efficiency (95s/hole) and short tool life
Failing to meet the requirement of Ra ≤0.40μm
High scrap rate due to unstable machining

Benefits

Cycle time shortened by 49%
Qualified hole wall roughness Ra 0.24μm
Machining efficiency and yield improved

22 - Conprofe Technology Co., Ltd. — <strong>Cycle Time s<strong>

2023.12.29-Six-Industry-V1.5_17 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
