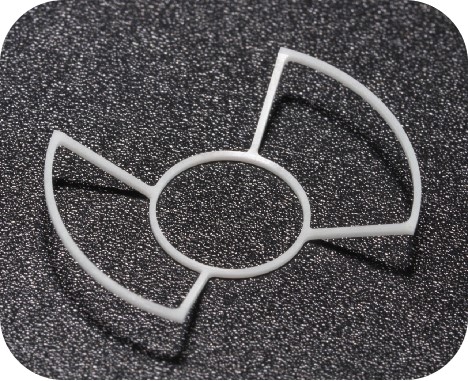

Zirconia Ceramic Aircraft Supporting Ring

Workpiece

Zirconia Ceramic
φ20.5 x 3.03mm
HV1,200

7 - Conprofe Technology Co., Ltd.

Challenges

Super-thin structure vulnerable to cracks (thickness＜0.3mm)

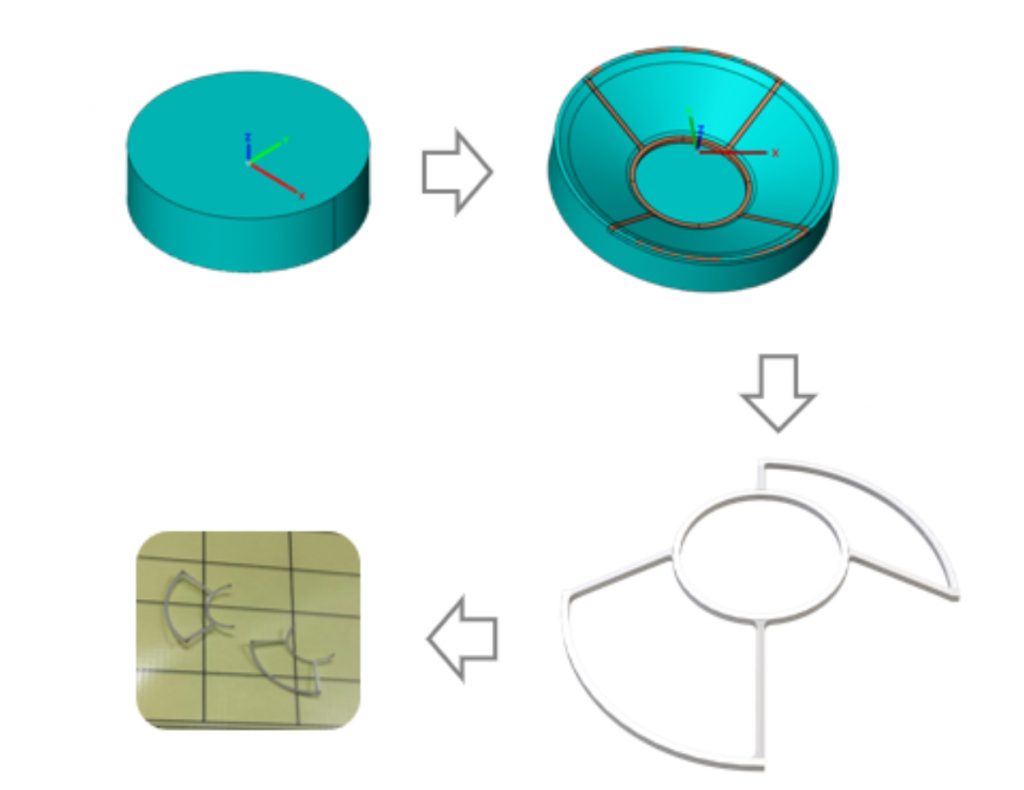

Material removal volume: 99.6%
Curved shape, difficult for workpiece clamping

Benefits

Lower cutting force, reduced sub surface damage (SSD) and cracks
Minimized surface carbonization with picosecond laser cutting

8 - Conprofe Technology Co., Ltd.

2023.12.29-Six-Industry-V1.5_10 - Conprofe Technology Co., Ltd.

Workpiece

Benefits

Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Burr reduction by 90%

Efficient 5-axis contouring of complicated shapes

Optional fully-closed protection and vacuum system against dust and explosion

Workpiece

Nomex Honeycomb Contouring

Challenges

Uneven machined surface, severe burrs and excessive dust
Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

Burr reduction by 90%
Efficient 5-axis contouring of complicated shapes
Optional fully-closed protection and vacuum system against dust and explosion
